KB8342 Press of the Knuckle Joint

Some data:
KB8342 press from the knuckle joint
1600 tn capacity
1983 year of manufacture
by Barnaul plant, Russia
Share
Ask for price On request
Condition Used - Working

Machine data

Condition Used - Working
Price type On request

Technical specifications

Length 3.480 mm
Width 2.600 mm
Height 4.110 mm
Motor power 60 kW

Occasional seller

S
STAN MT LLC Private seller
Member since 2017
80 ads online

SEND REQUEST

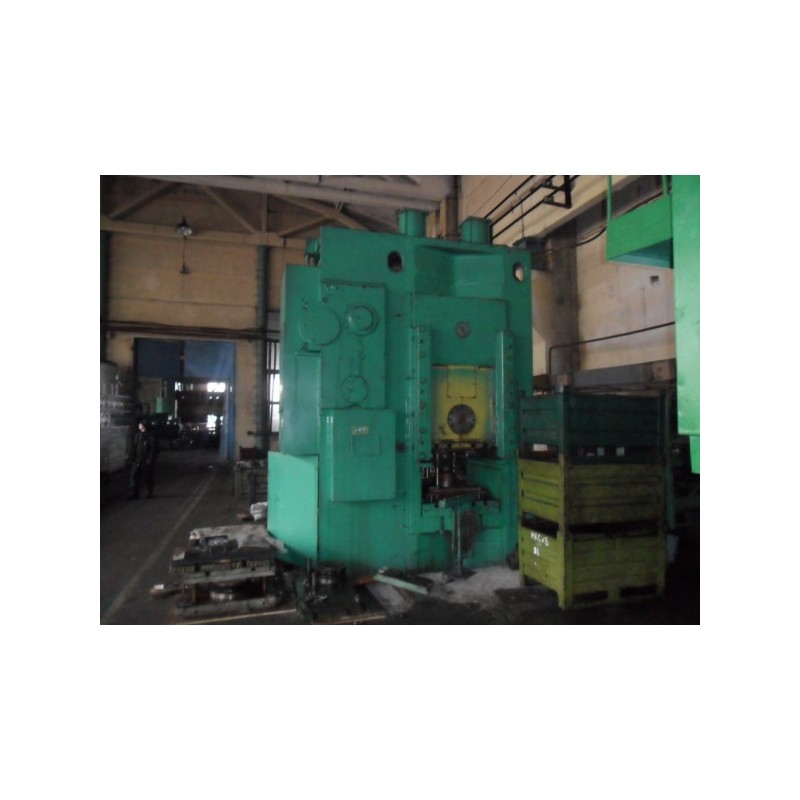

Knuckle joint press KB8342

KB8342 Knuckle Joint Press

Specification:
Nominal capacity: 1600 tons
Slide stroke: 180 mm
Number of strokes per minute: 25
Strokes per minute: 16
Die height: 510 mm
Adjustable movement of the collar memory plate: 16
Table size: 1000 x 1000 mm
Slide dimensions: 860 x 900 mm
Reinforcement plate thickness: 160 mm
Lower removable disk:
-Movement: 110 mm
-Force: 500 kN
Upper cover:
-Movement: 16 mm
-Force: 160 kN
Main motor: 60 kW
Overall dimensions: 3480 x 2600 x 4110 mm
Weight: 45 tons

Good working condition.

  • Seller's country: Ucrania
  • State: Used - Functional
  • Weight: More than 10,000 kg
  • Long: 3,000 - 5,000 mm
  • Width: 2,000 - 3,000 mm
  • High: More than 3,500 mm
  • Motor power: 30 - 75 kW
  • Bending/pressing force: More than 600 tons
  • Condition: Array
  • Weight: 0.000000
