GOITI NRR160

Goiti NRR160 press, 160 tons
Share
Ask for price On request
Condition Used - Working

Machine data

Condition Used - Working
Price type On request

Technical specifications

Weight 18.000 kg
Motor power 22,50 kW
Voltage Otra

Occasional seller

M
Maquinaria Industrial Donosti SL Private seller
Member since 2017
51 ads online

SEND REQUEST

GOITI NRR160
GOITI NRR160

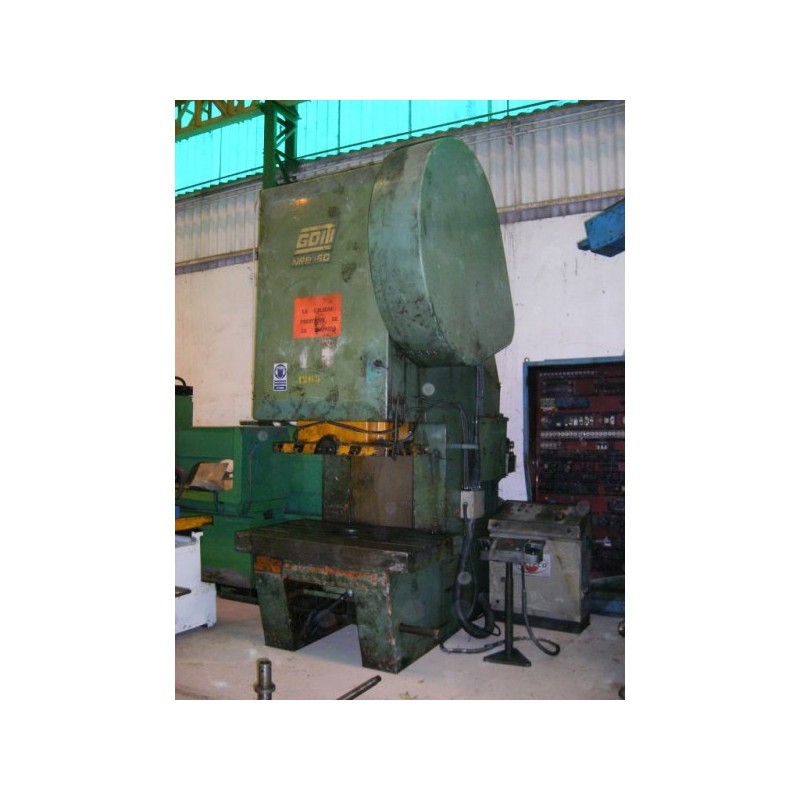

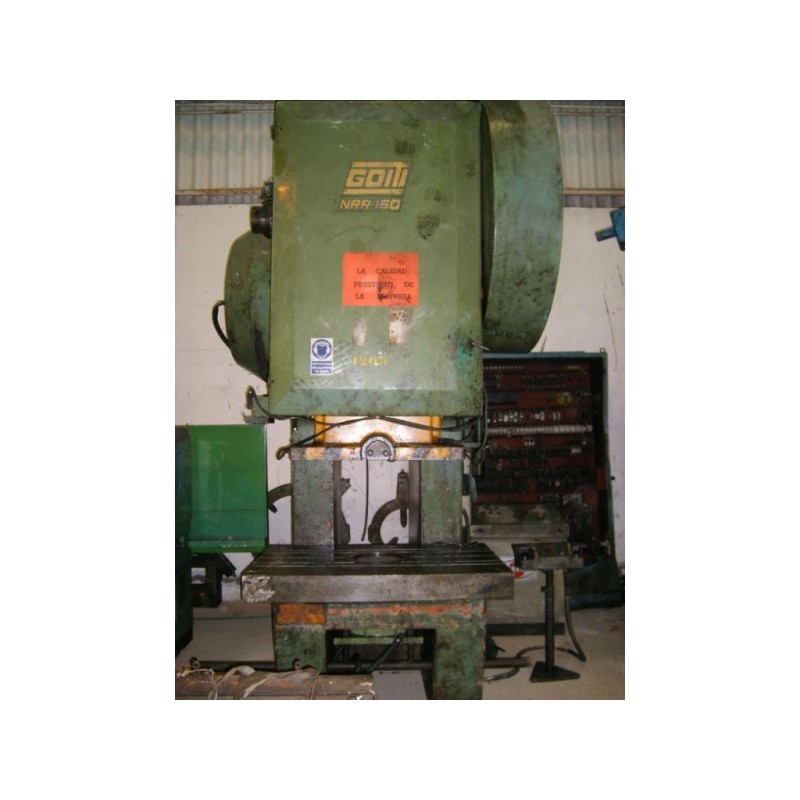

Gooseneck eccentric press with pneumatic clutch.
Nominal force: 160Tn.
Stroke length: 20-220mm.
Table dimensions: 1500x930mm.
Bolster plate dimensions: 1500x930mm.
Slide base dimensions: 1000x700mm.
Slide hole Ø: 50.
Table hole Ø: 400x355.
Bolster plate hole Ø: 140.
Height between slide and table: 755.
Height between slide and plate: 355.
Slide height adjustment: 100.
Throat depth: 450.
Opening between uprights: 600.
Strokes per minute: 15.
Net weight: 18Tn.
Motor power: 30cv.
RPM: 1500.
Voltage: 220/380.
With ejector cushion.

15000 euros

  • Seller's country: España
  • State: Used - Functional
  • Weight: More than 10,000 kg
  • Motor power: 15 - 30 kW
  • Tension: Another
  • Bending/pressing force: 150 - 300 tons
  • Condition: Array
  • Weight: 0.000000
