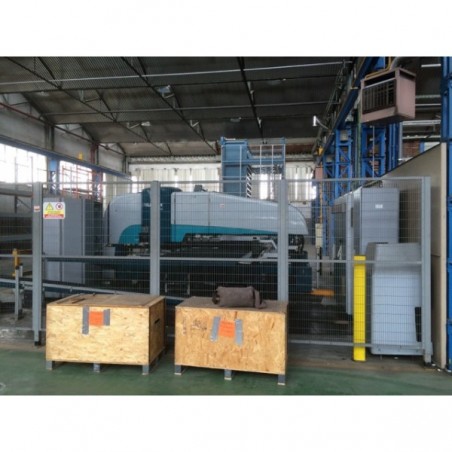

CNC Punching Line LVD Pullmax Series Model 7000.
Series 6700-09, year 2004. X-axis travel: 3,090 mm. Y-axis travel: 1,725 mm. Max. sheet size: 3,000 x 1,500 mm. Max. sheet thickness: 6.4 mm. Min. sheet thickness: 0.7 mm. With repositioning (X-axis) Max. sheet weight: 220 kg. Positioning speed: 80 m/min. Max. force: 300 kN. Number of tools in the magazine: 15. Max. tool diameter: 76.2 mm. Punching diameter: 110 mm. Tool change time: 0.2 - 4 sec. Trap door dimensions: 525 x 450 mm. Optitool rotation speed: 80 rpm. Max. rotation at 250 rpm: 20 degrees. Orbittool Number of tools in the cassette: 4 dia. 0-12 mm / 4 dia. 12-20 mm. Max. force: 6 tons. Dimensions and weight Width: 6,340 mm. Depth: 6,080 mm. Height: 2,460 mm. Weight: 14,000 kg. Control equipment The machine is controlled by the Pullmax C 500 computer consisting of: Control unit. Computer link for communication with any external computer. 5 units for operator communication. Control unit
The control unit consists of standard hardware with the Pullmax software system. The computer and I/O (input/output) cards are mounted in a complete VME cabinet with power supply. Connections to external computers are made via an RS232 interface. Loader Model Tivox Austostore HL91 Number of platforms: 1 Number of magazines: 14 Max. sheet dimensions: 3048 mm x 1524 mm. Min. sheet dimensions: 1000 mm x 1000 mm. Max. sheet weight on pallet: 3000 kg. Max. stacking capacity on pallet: 200 mm. For more information, send your email.
