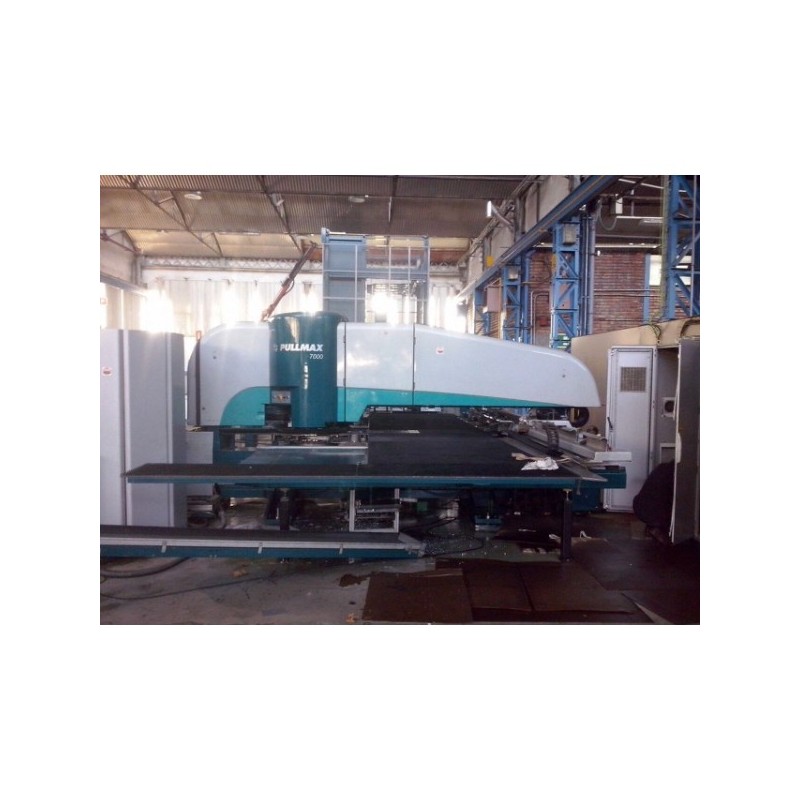

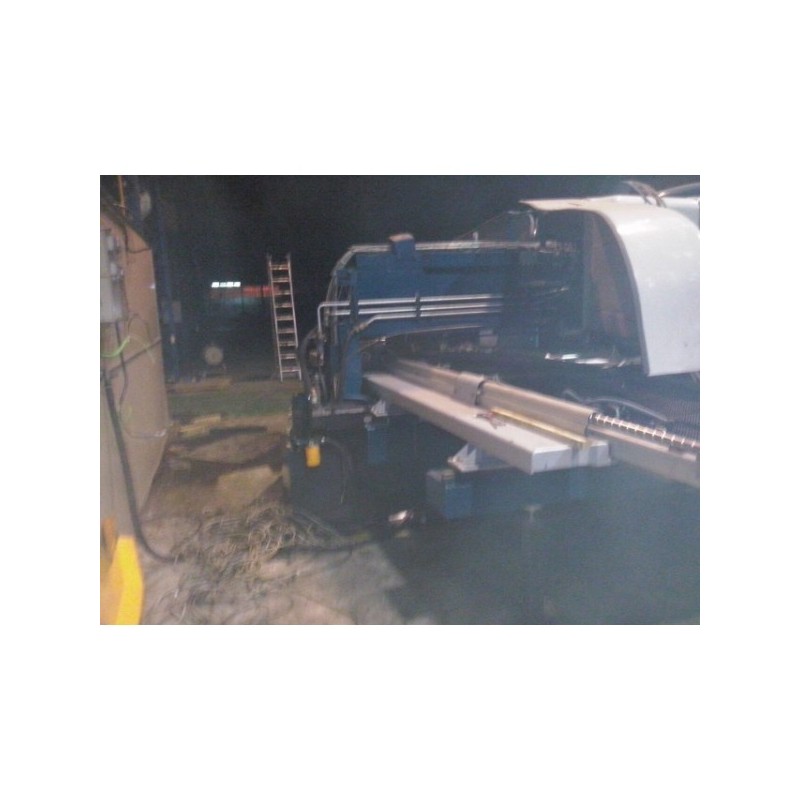

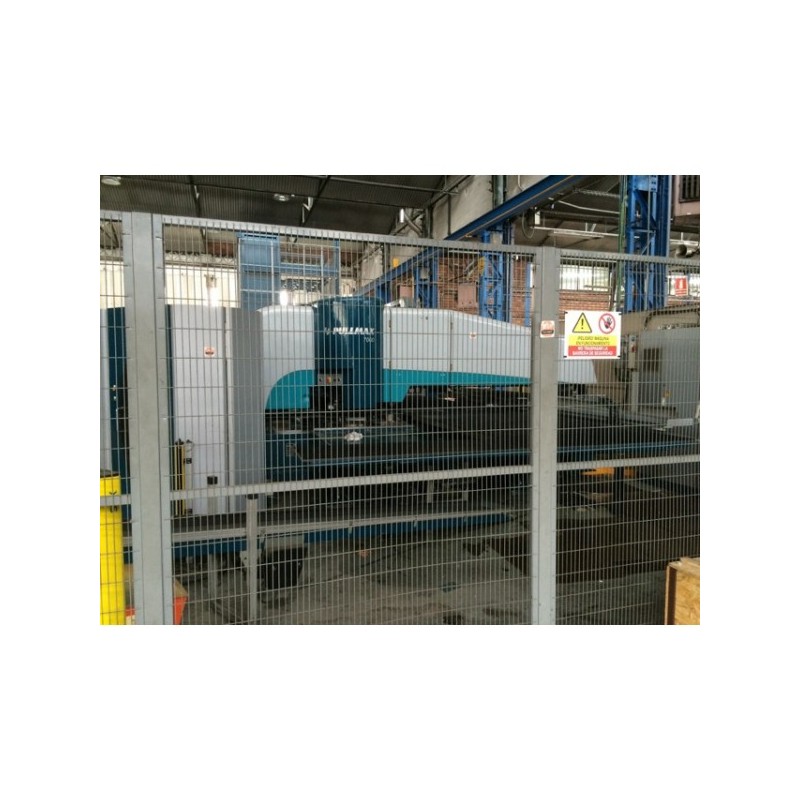

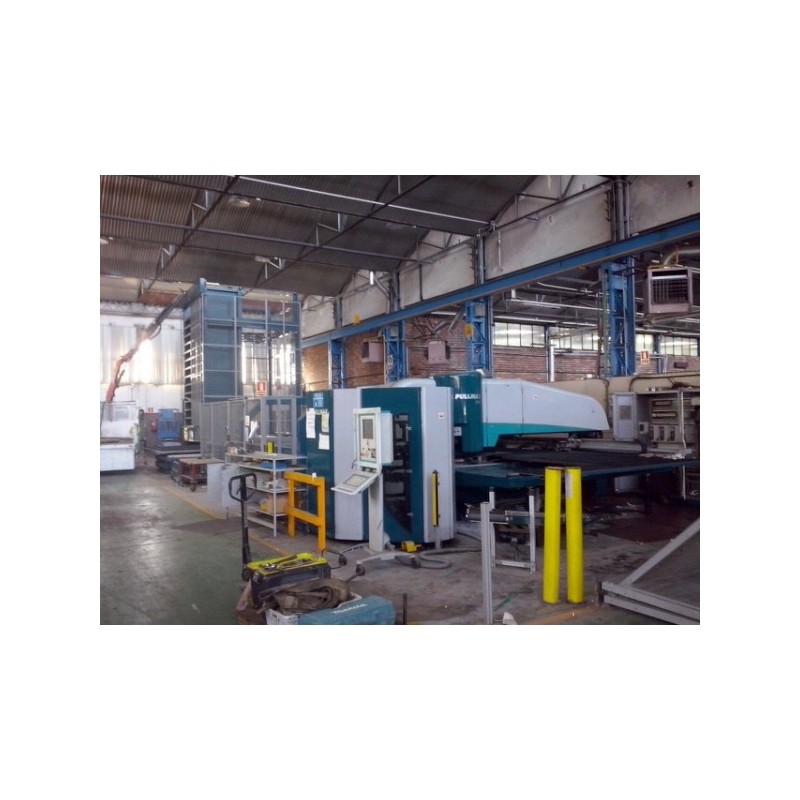

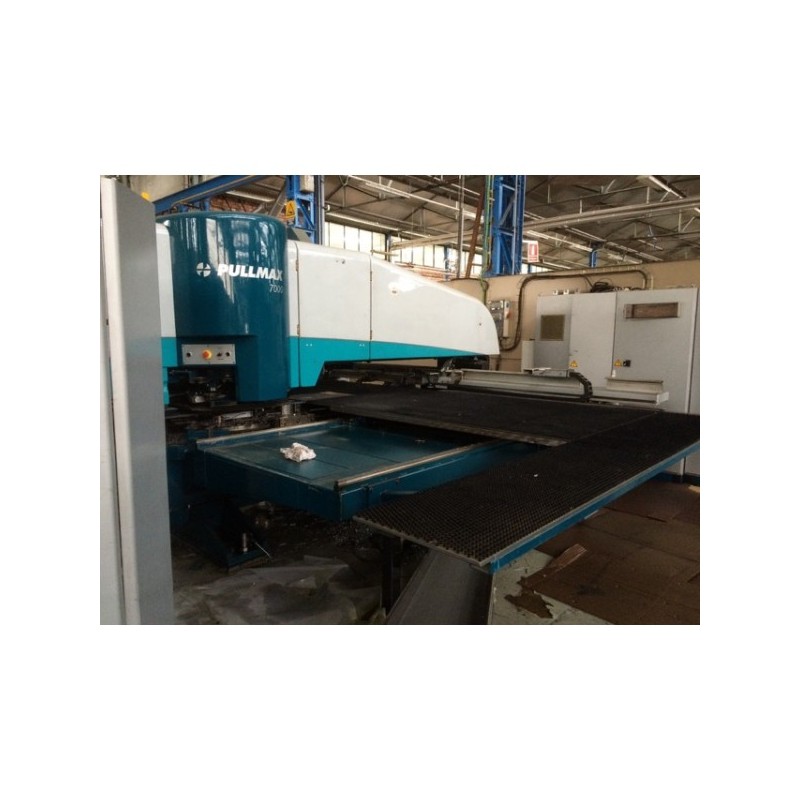

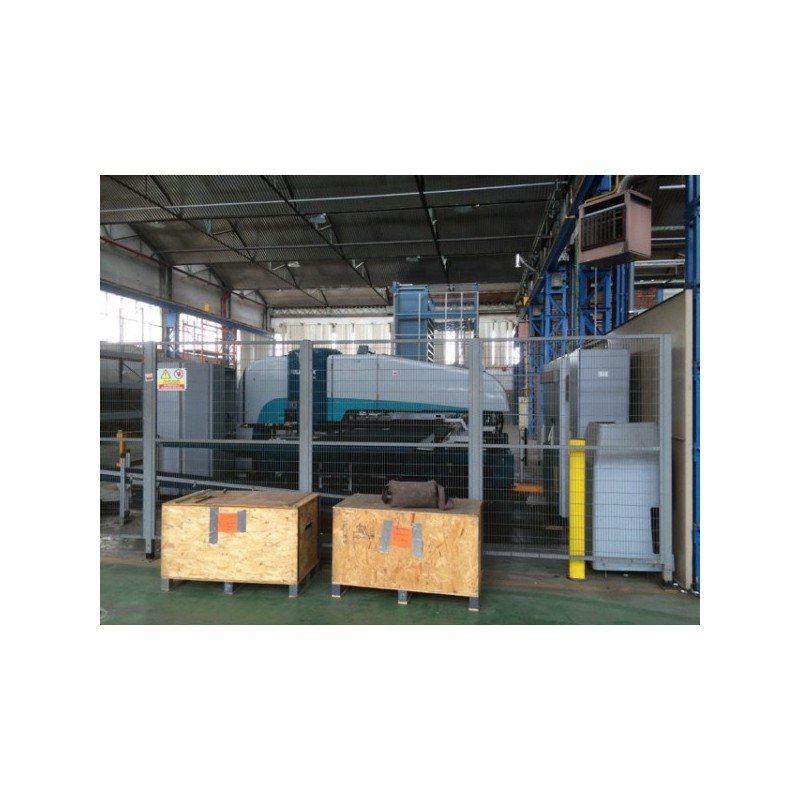

LDV Series PULLMAX model 7000

X-axis travel: 3.090 mm
Y-axis travel: 1.725 mm
Max. sheet size: 3.000 x 1.500 mm
Max. sheet thickness: 6.4 mm.
Min. sheet thickness: 0.7 mm.
With repositioning (X-axis)
Max. sheet weight: 220 Kg.
Positioning speed: 80 m/min.
Number of tools in magazine: 15.
Max. tool diameter: 76.2 mm.
Punching diameter: 110 mm.
Tool change time: 0.2 - 4 sec.
"Trapdoor" dimensions: 525 x 450 mm.

OptiTool
OptiTool rotation speed: 80 rpm.
Max. rotation at 250 rpm: 20 degrees.

OrbitTool
Number of tools in cassette: 4 Dia. 0-12 mm. / 4 Dia. 12-20 mm.
Max. force: 6 tons.

Dimensions and weight
Width: 6.340 mm.
Depth: 6.080 mm.
Height: 2.460 mm.
Weight: 14.000 Kg.

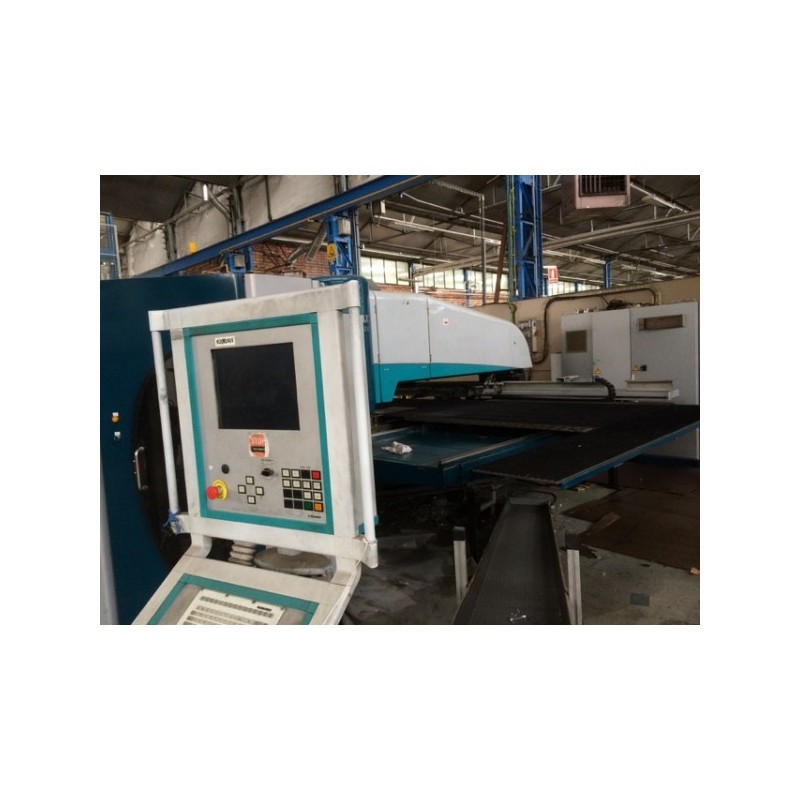

Control equipment
The machine is controlled by the Pullmax C500 computer consisting of:
- Control unit.
- Computer link for communication with any external computer.
- 5 units for operator communication.
Control unit
The control unit consists of standard hardware with Pullmax software system. The computer and I/O (input/output) cards are mounted in a complete VME cabinet with power supply.
Links with external computers are made via an RS232 interface.

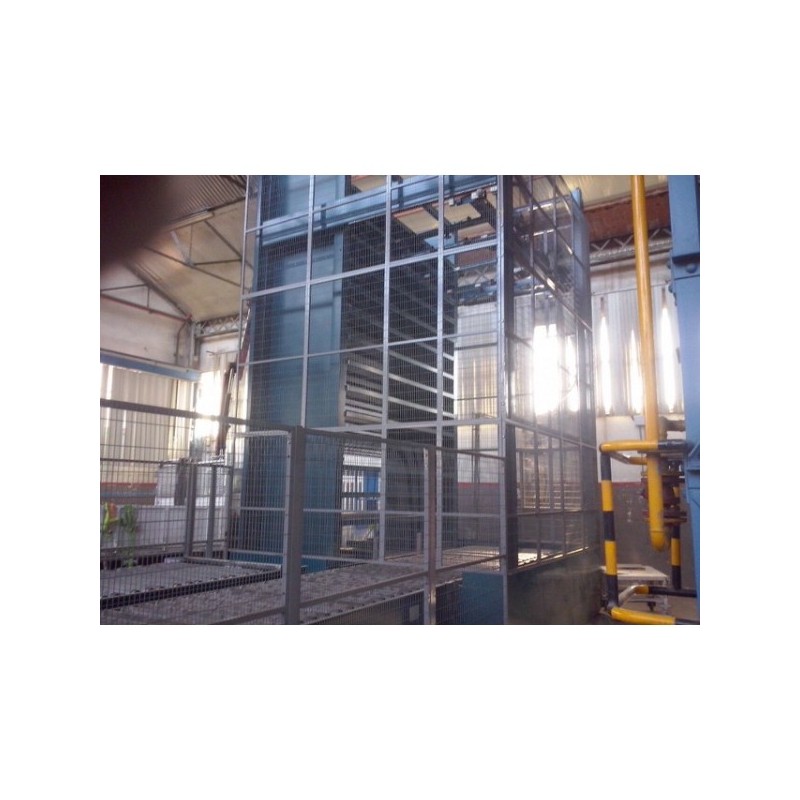

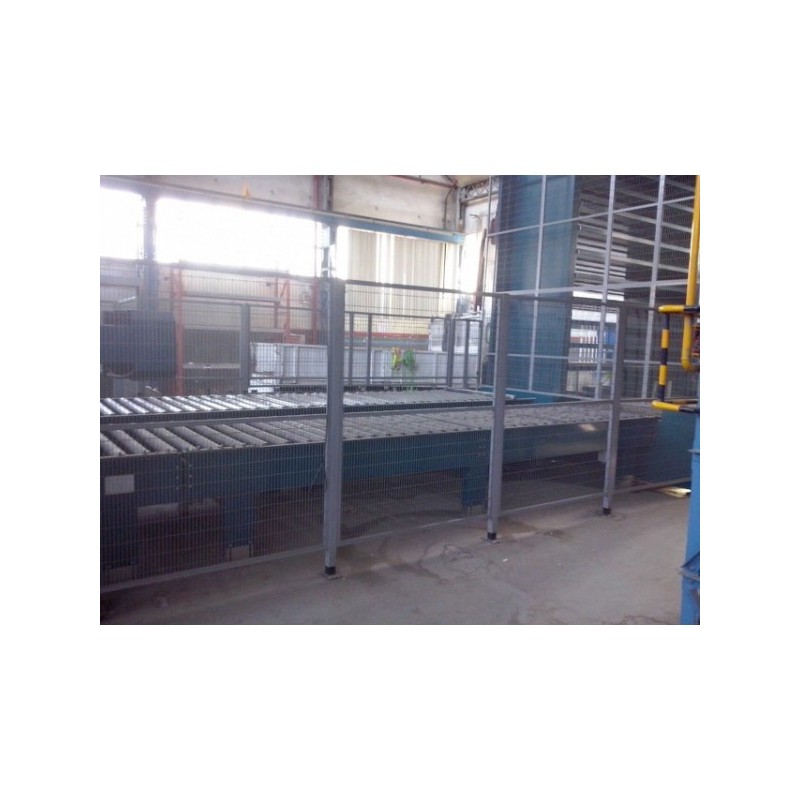

Loader Model TIVOX aUSTOSTORE HL91
Number of platforms: 1
Number of magazines: 14
Max. sheet size: 3048 mm x 1524 mm.
Min. sheet size: 1000 mm x 1000 mm.
Max. sheet weight on pallet: 3000 Kg.
Max. stacking capacity on pallet: 200 mm.
