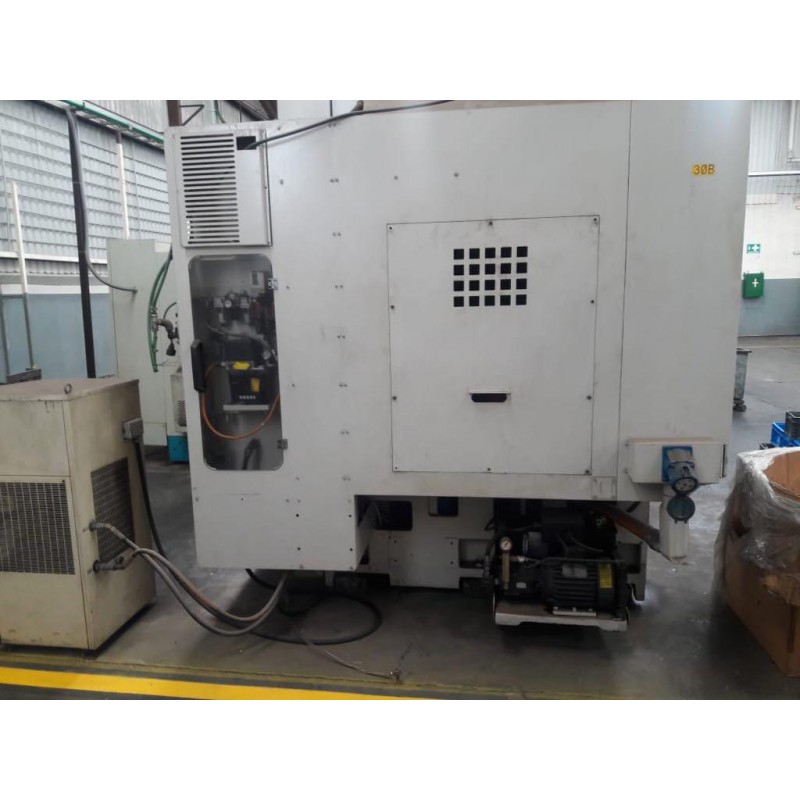

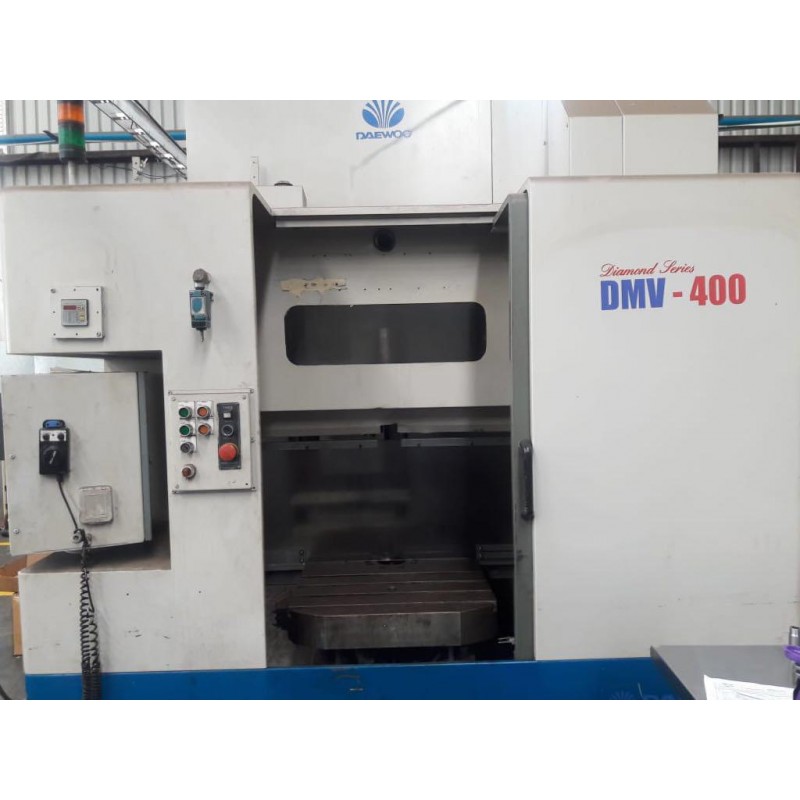

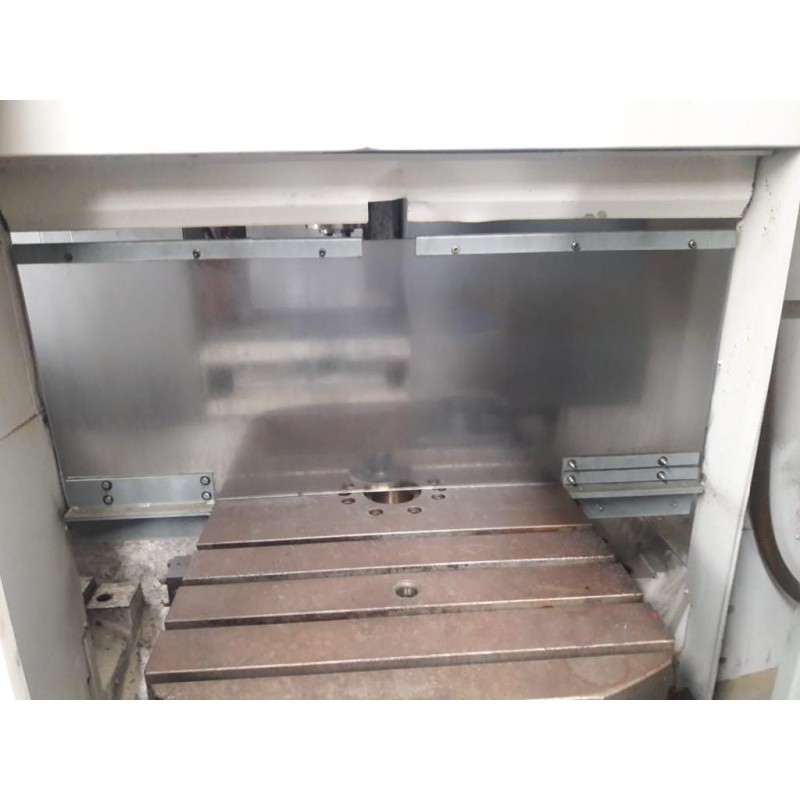

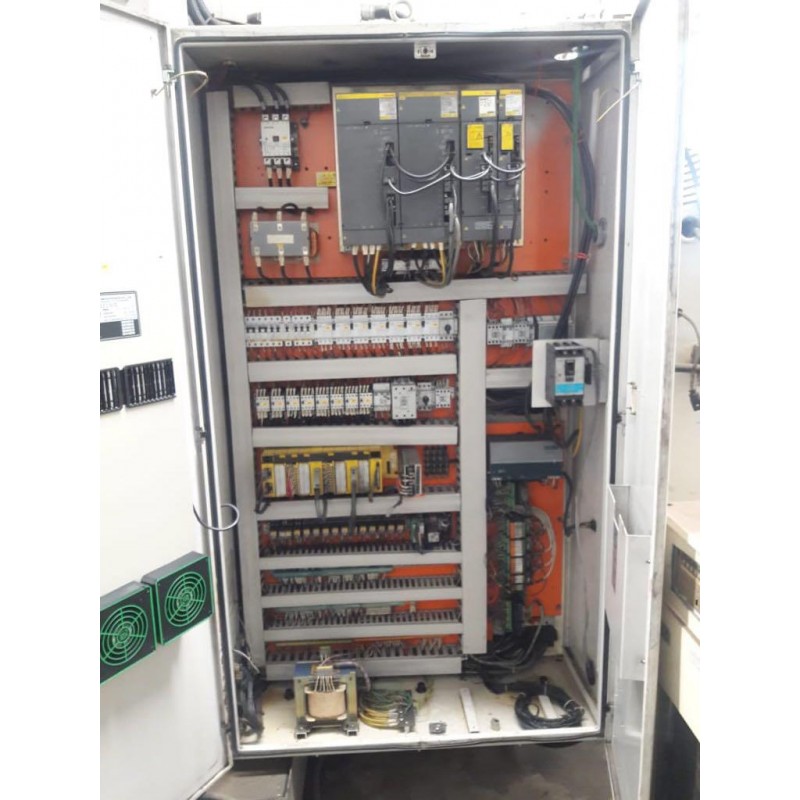

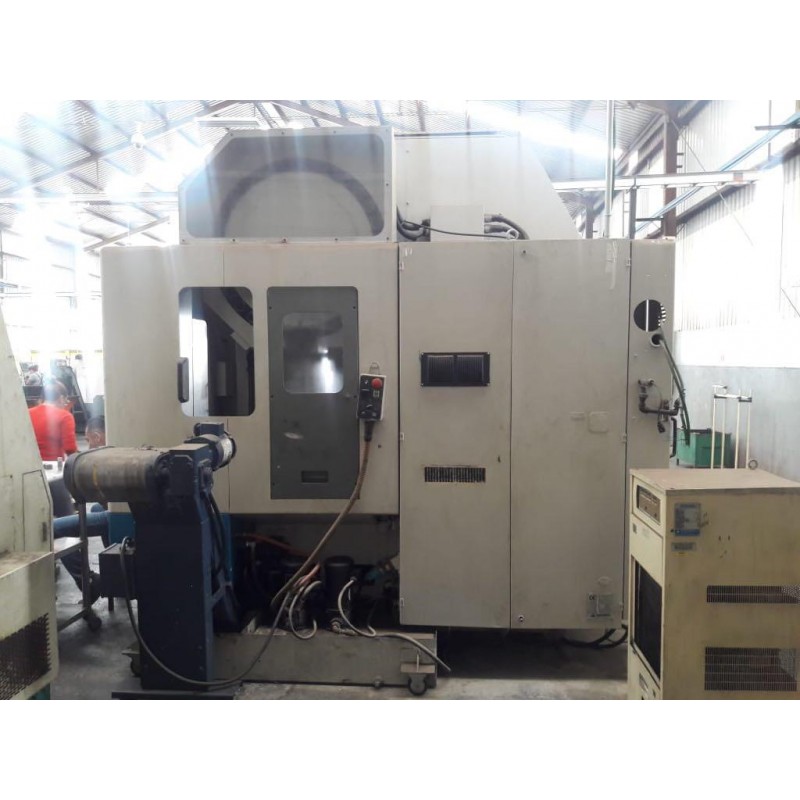

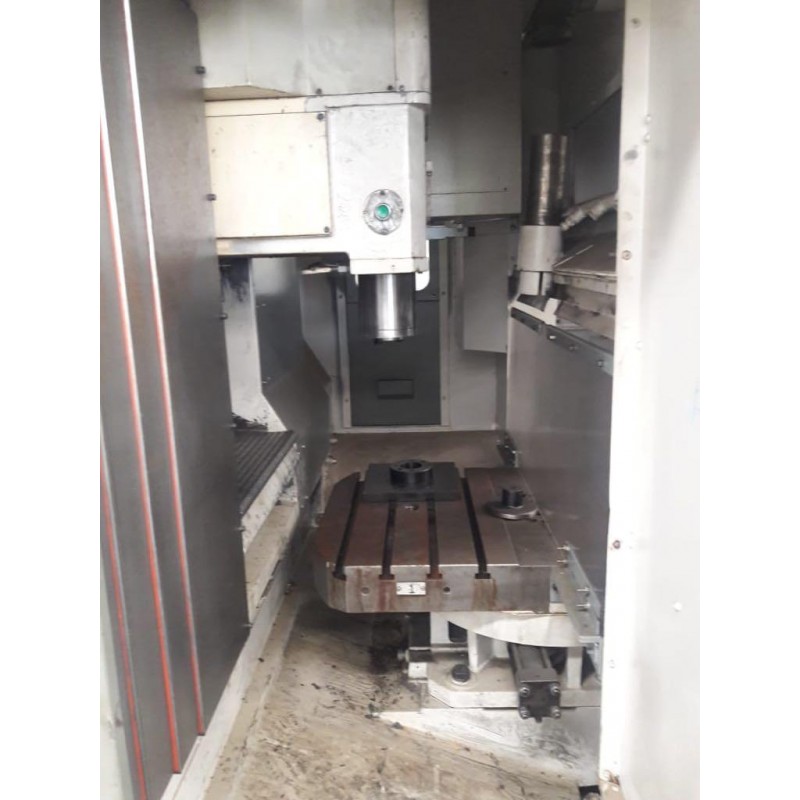

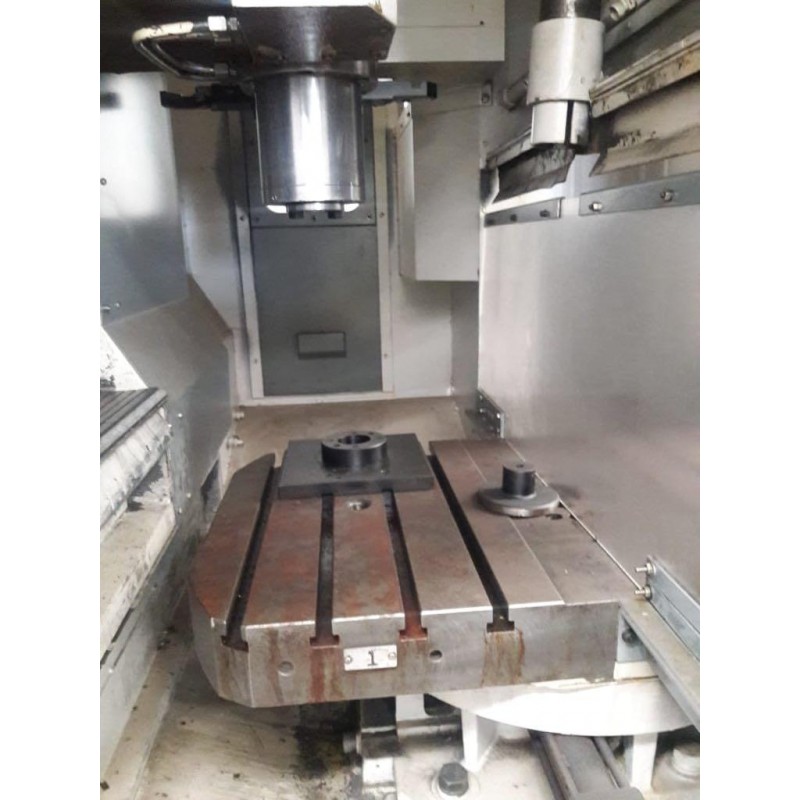

DMV 400 - YEAR 2004

Doosan
€50,000.00
Tax excluded
DMV 400 VERTICAL MACHINING CENTER - 3 AXES
Share
Price €50,000.00
Condition Used - Working

Machine data

Manufacturer Doosan
Condition Used - Working
Hours of use 50 h
Price type Fixed price

Technical specifications

Weight 6.350 kg
Length 3.150 mm
Width 2.794 mm
Height 2.540 mm
Control type CNC
CNC control brand Fanuc
Spindle speed 10.000 rpm
Spindle power 11,20 kW

Occasional seller

M
Makina Industrial Services, SA de CV Private seller
Member since 2019
3 ads online

SEND REQUEST

DMV 400 - AÑO 2004
DMV 400 - AÑO 2004
DMV 400 - AÑO 2004
DMV 400 - AÑO 2004
DMV 400 - AÑO 2004
DMV 400 - AÑO 2004
DMV 400 - AÑO 2004

Year 2004
Control Fanuc 18iMB
Table Size 25.6"
Max Weight On Table 660 lbs
Travels (X) 22"
Travels (Y) 15.7"
Travels (Z) 22.4"
Rapid Traverse (X,Y) 1,181 IPM
Rapid Traverse (Z) 945 IPM
Spindle Taper CAT 40
Spindle Speed 10,000 RPM
Spindle Motor 15 HP
Automatic Tool Changer Positions 30
Tool Change Time 1.5
Coolant Through Spindle Yes
Machine Weight 14,000 lbs
Number of Axes 3
Machine dimensions 124x110x100"
Equipped With:
Fanuc 18MB CNC Control
Pallet Changer
Manual Pulse Generator
Chip Conveyor
Full Enclosure

  • Year: 2004
  • Type of lathe: Vertical
  • Cone type:: ISO-40
  • X travel (mm): 559
  • Y travel (mm): I need the text you want me to translate. Please provide the Spanish text you'd like me to translate into English.
  • Z travel (mm): 569
  • Hours of use: 0 - 100
  • Rotation speed (rpm): 10,000
  • Plate size (inches): 650
  • Chip extractor: YES
  • Tool changer (num tools): I need the text to translate. Please provide the Spanish text you want me to translate into English.
  • Weight (kg): 6350
  • Seller's country: Mexico
  • State: Used - Functional
  • Hours of use (value): I need the text you want me to translate. You only wrote "50". Please provide the full text you'd like translated from Spanish to English.
  • Weight: 5,000 - 10,000 kg
  • Long: 3,000 - 5,000 mm
  • Width: 2,000 - 3,000 mm
  • High: 2,500 - 3,500 mm
  • Control type: CNC
  • Spindle speed: 8,000 - 15,000 rpm
  • Spindle power: 5 - 15 kW
  • Number of axes: 3 axes
  • CNC control brand: Fanuc
  • Condition: Array
  • Peso: 0.000000
