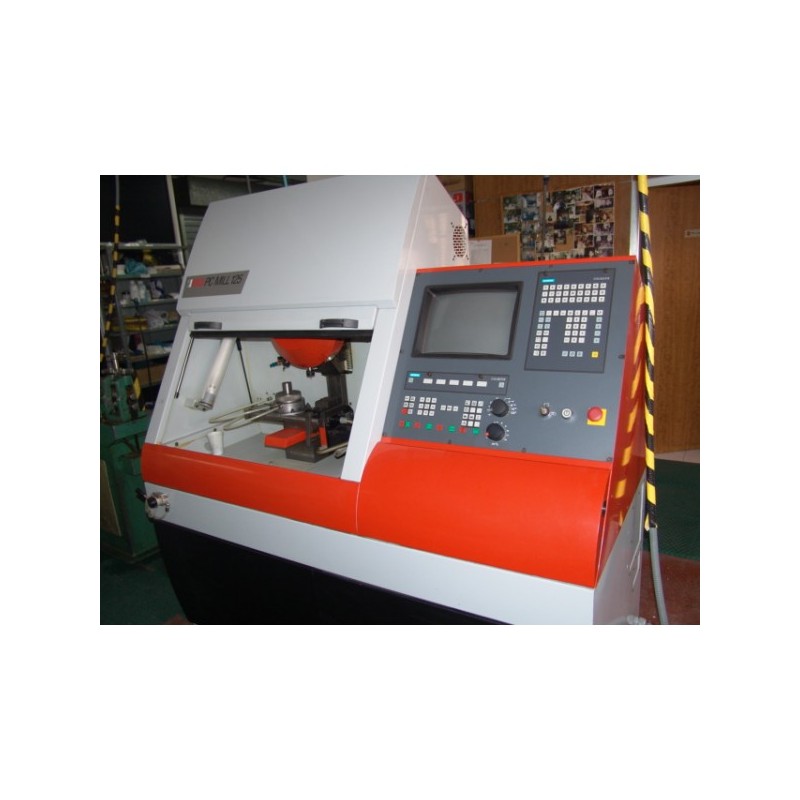

EMCO PCMill 125

VERTICAL MACHINING CENTER WITH INTERCHANGEABLE CONTROL, SEMI-NEW, FEW WORKING HOURS, GREAT OPPORTUNITY 11400 EUROS. SOLD WITH A SET OF EXT/INT COLLETS.
Share
Ask for price On request
Condition Used - Working

Machine data

Condition Used - Working
Price type On request

Technical specifications

Length 1.730 mm
Width 875 mm
Height 1.900 mm
X travel 185 mm
Y travel 125 mm
Z travel 200 mm
Tool changer slots 10

Occasional seller

L
Luis Abellan Private seller
Member since 2017
1 ad online

SEND REQUEST

EMCO PCMill 125

STABLE CAST CONSTRUCTION
HARDENED GUIDES
PRELOADED BALL SCREWS FOR ALL THREE AXES
10-POSITION TOOL CAROUSEL WITH DIRECTIONAL LOGIC
HIGH-RESOLUTION STEPPER MOTORS
HELICAL INTERPOLATION
FULLY ENCLOSED WORK AREA
INTEGRATED MACHINE BASE
WORK AREA
X TRAVEL 185MM Y 125 MM Z 200MM
MAXIMUM TOOL WEIGHT 0.7 KG
MAXIMUM TOOL DIAMETER DIAM.55MM
MACHINE DIMENSIONS
1730 - 875 - 1900 MM
WEIGHT 560 KG.

  • Seller's country: España
  • State: Used - Functional
  • Weight: 500 - 1,000 kg
  • Long: 1,000 - 2,000 mm
  • Width: Up to 1,000 mm
  • High: 1,500 - 2,500 mm
  • X Travel: Up to 500 mm
  • Y travel: Up to 300 mm
  • Z travel: Up to 300 mm
  • Tool changer: Up to 20
  • Number of axes: 3 axes
  • Condition: Array
  • Weight: 0.000000
