510 T

Topper

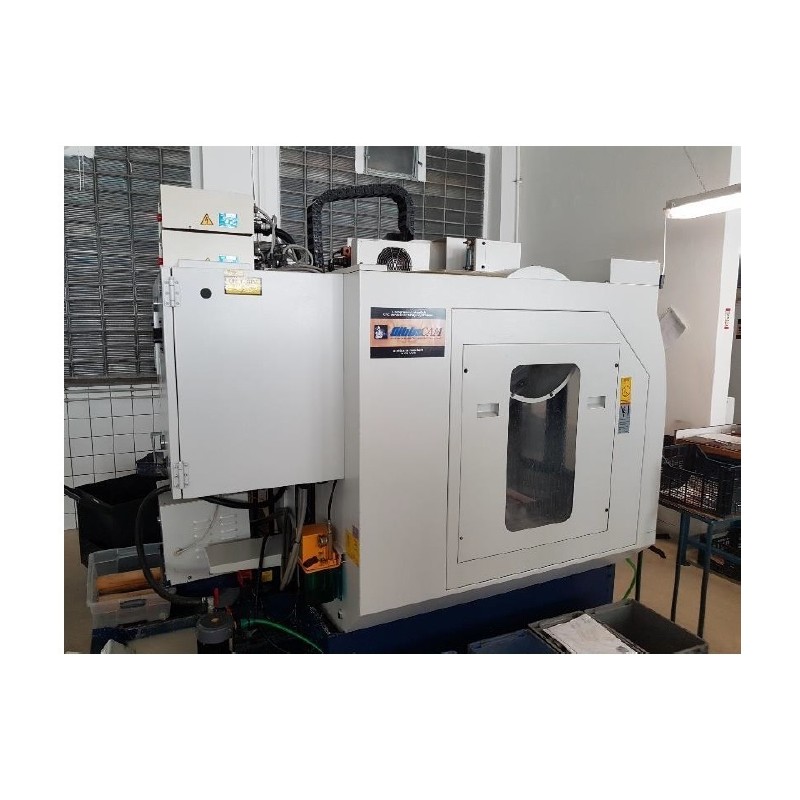

CNC machining center (vertical) TOPPER 510 T
Share
Ask for price On request
Condition Used - Working

Machine data

Manufacturer topper
Condition Used - Working
Price type On request

Technical specifications

Weight 4.500 kg
Length 3.000 mm
Width 2.400 mm
Height 2.600 mm
Tool changer slots 20

Occasional seller

A
Amaron s.r.o. Private seller
Member since 2017
99 ads online

SEND REQUEST

510 T
510 T

Control system: FANUC 0i-MC
Table dimensions: 600 × 300 mm
Maximum load: 200 kg
Spindle speed: 12000 rpm
Spindle power: 5.5 kW
Tool taper: BT30
Tool storage capacity: 20 + 1
Rapid traverse: 48 m/min
Machine dimensions: 3000 x 2400 x 2600 mm
Machine weight: 4500 kg
Accessories:
Serial port + PCMCIA card
Light signaling
Chip conveyor
Manual
Renishaw TS27R tool probe
BT30 tool holders (various types)

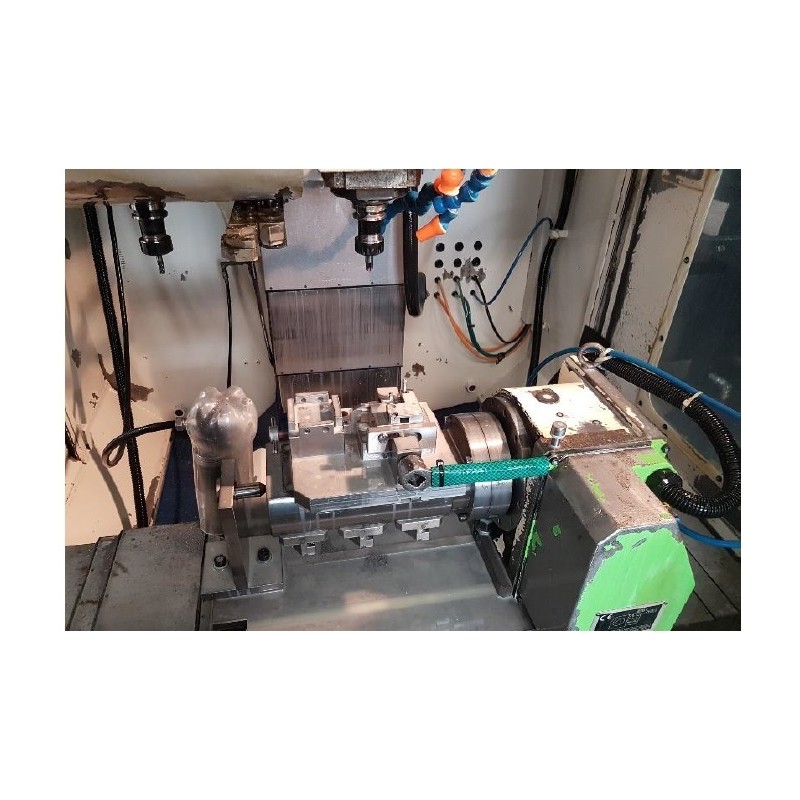

4-axis (controlled by M-Codes - 0.001° indexing + separate control unit - allows any other CNC machine or conventional machine)
Clamping device for 4-axis multi-axis machining, including clamping flange and tailstock
Connections for DNC network (MOXA)

  • Seller's country: Chequia
  • State: Used - Functional
  • Weight: 2,500 - 5,000 kg
  • Long: 3,000 - 5,000 mm
  • Width: 2,000 - 3,000 mm
  • High: 2,500 - 3,500 mm
  • Spindle speed: 8,000 - 15,000 rpm
  • Spindle power: 5 - 15 kW
  • Tool changer: 20 - 30
  • Condition: Array
  • Weight: 0.000000
