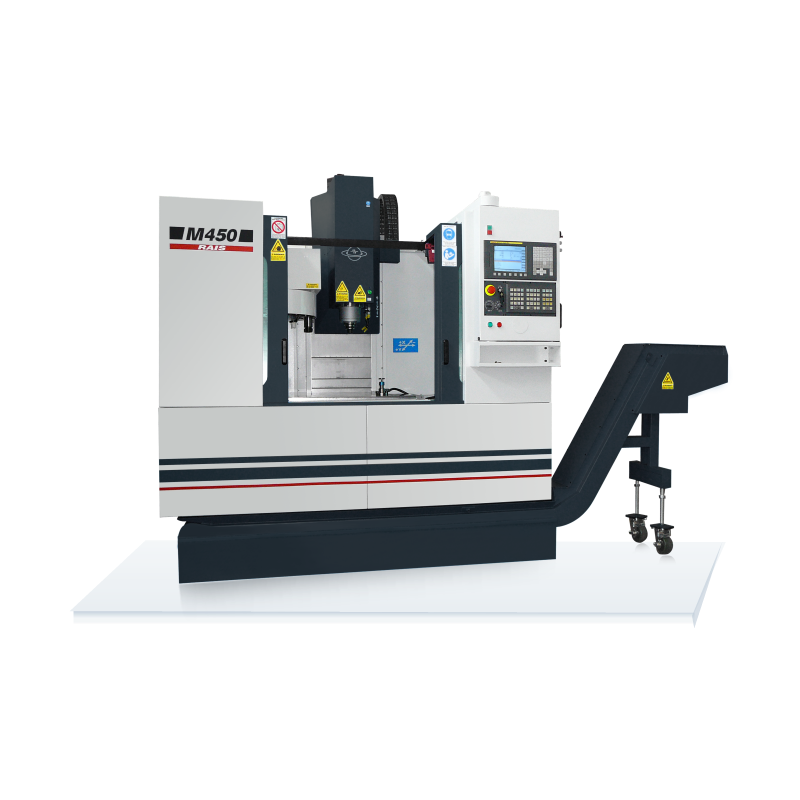

M450

Direct drive spindle assembly and high-precision bearings: minimal spindle cone runout; improved running smoothness under high-speed machining conditions; increased tool durability.
Linear guides along all three axes: size 25, zero clearance. Stable cutting under full load conditions. Minimal friction when in motion. High precision and high speed without the need for adjustment during operational life.
Telescopic covers along all three axes: long service life for ball screws and linear guides; fast and efficient chip flushing using coolant.
All ball screws - high precision, class P3, Ø32 mm OD, with double nut, preloaded to control backlash. High positioning accuracy and smooth operation.
Automatic air blast during tool change ensures cleanliness of the taper and spindle cone.
Fully enclosed splash guard. Swiveling CNC control panel. Maximum convenience for setup and operation.
Directly coupled to AC servo motors on ball screws on all axes: guaranteed excellent interpolation accuracy.
High-quality gray iron castings. Optimal ribbed base, column, and spindle housing; maximum rigidity guaranteed and minimal deflection under applied load conditions.
