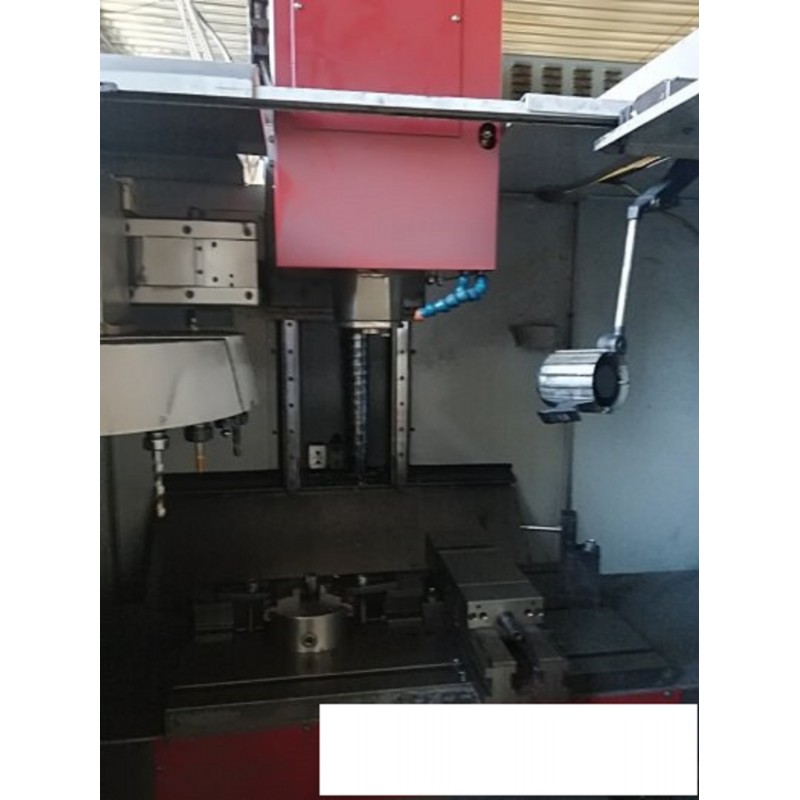

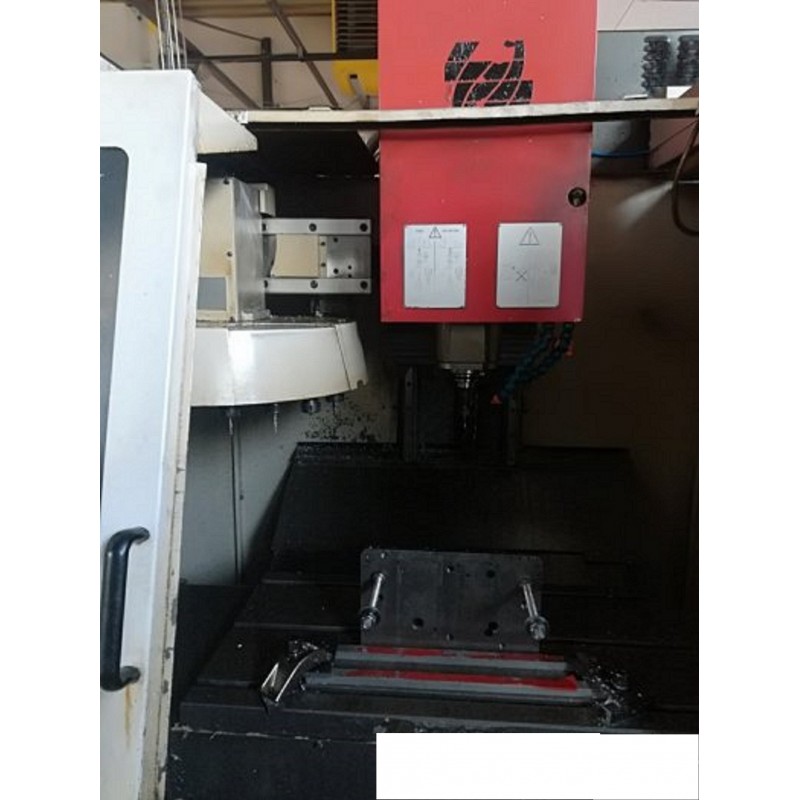

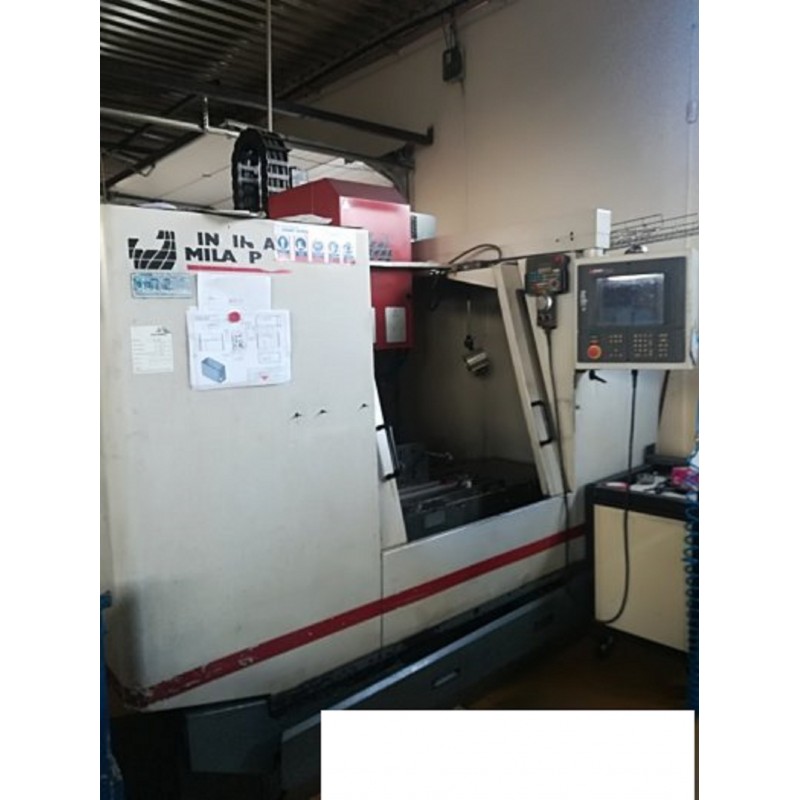

ARROW VMC 750

Cincinnati
Machining center (vertical) CINCINNATI ARROW VMC 750
Control system: Acramatic 2100
Share
Ask for price On request
Condition Used - Working

Machine data

Manufacturer CINCINNATI
Condition Used - Working
Price type On request

Technical specifications

Weight 5.500 kg
Length 2.800 mm
Width 2.920 mm
Height 2.700 mm
Spindle speed 6.000 rpm
Spindle power 8,75 kW
Tool changer slots 21

Occasional seller

A
Amaron s.r.o. Private seller
Member since 2017
99 ads online

SEND REQUEST

ARROW VMC 750
ARROW VMC 750
ARROW VMC 750

Control system: Acramatic 2100
Type: FLECHA VMC 750
Manufacturer: CINCINNATI
Made in: 1999
Features:
Travel distances:
X: 760 mm
Y: 510 mm
Z: 510 mm
Spindle power: 8.75 KVA
Spindle speed: 6000 RPM
Tool magazine: 21 positions
Taper: ISO 40
Table dimensions: 950 x 520 mm
Maximum table load: 450 kg
Machine dimensions:
2800 x 2920 x 2700 mm
Machine weight: 5500 kg

  • Year: 1999
  • X travel (mm): 760
  • Y travel (mm): 510
  • Z travel (mm): 510
  • Rotation speed (rpm): 6000
  • Power (kW): It looks like you only provided the number "9" without any surrounding text. Could you please provide the full text you'd like translated from Spanish to English?
  • Table size (width) (mm): 950
  • Table size (length) (mm): I need the text to translate. Please provide the text you want me to translate from Spanish to English.
  • Tool changer (num tools): 21
  • Weight (kg): 5500
  • Seller's country: Chequia
  • State: Used - Functional
  • Weight: 5,000 - 10,000 kg
  • Long: 2,000 - 3,000 mm
  • Width: 2,000 - 3,000 mm
  • High: 2,500 - 3,500 mm
  • X Travel: 500 - 1,000 mm
  • Y travel: 300 - 600 mm
  • Z travel: 500 - 800 mm
  • Spindle speed: 3,000 - 8,000 rpm
  • Spindle power: 5 - 15 kW
  • Tool changer: 20 - 30
  • Condition: Array
  • Weight: 0.000000
