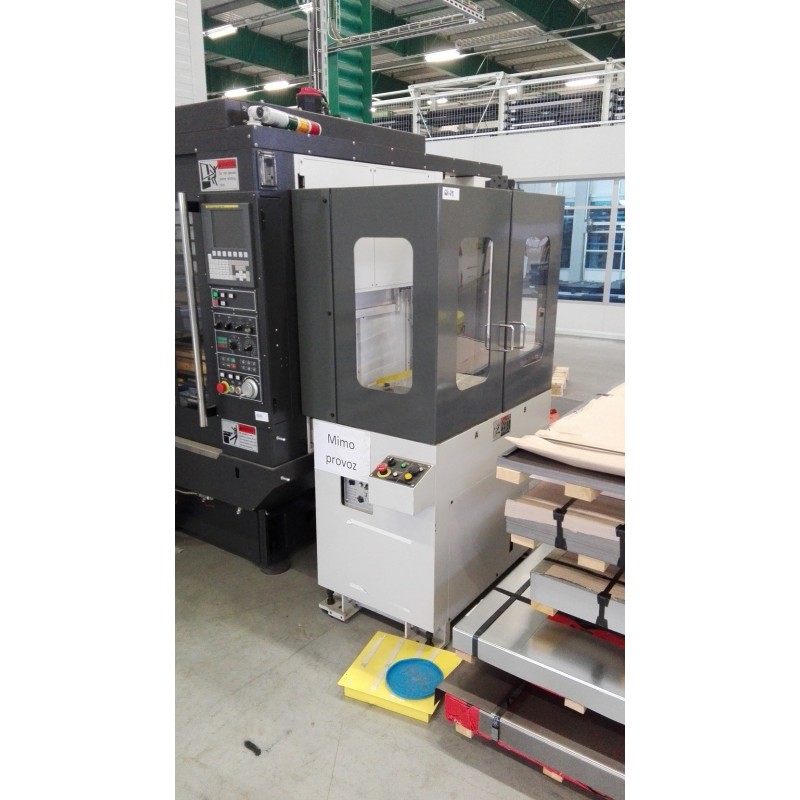

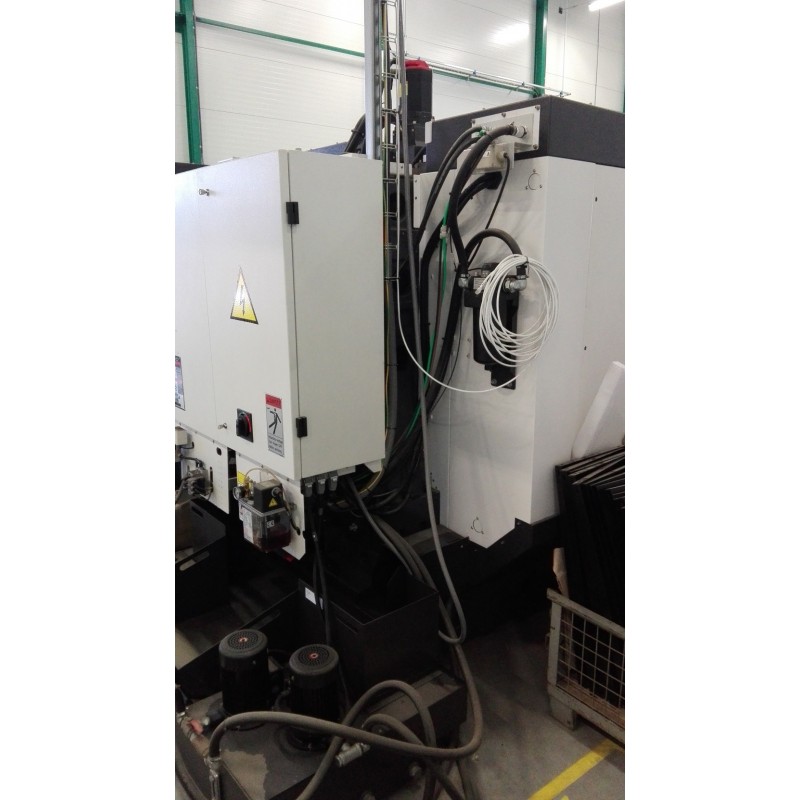

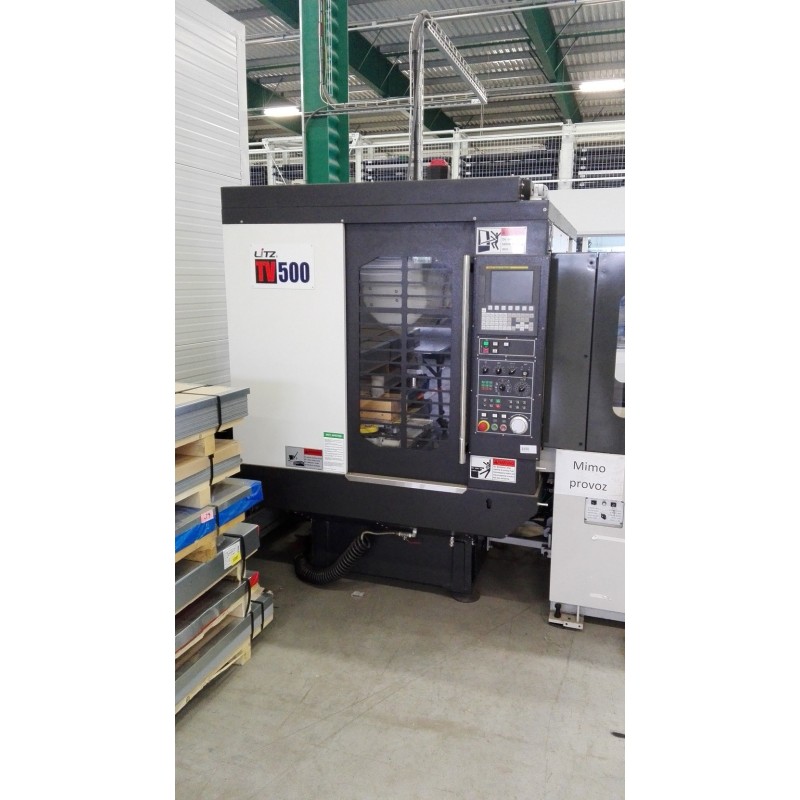

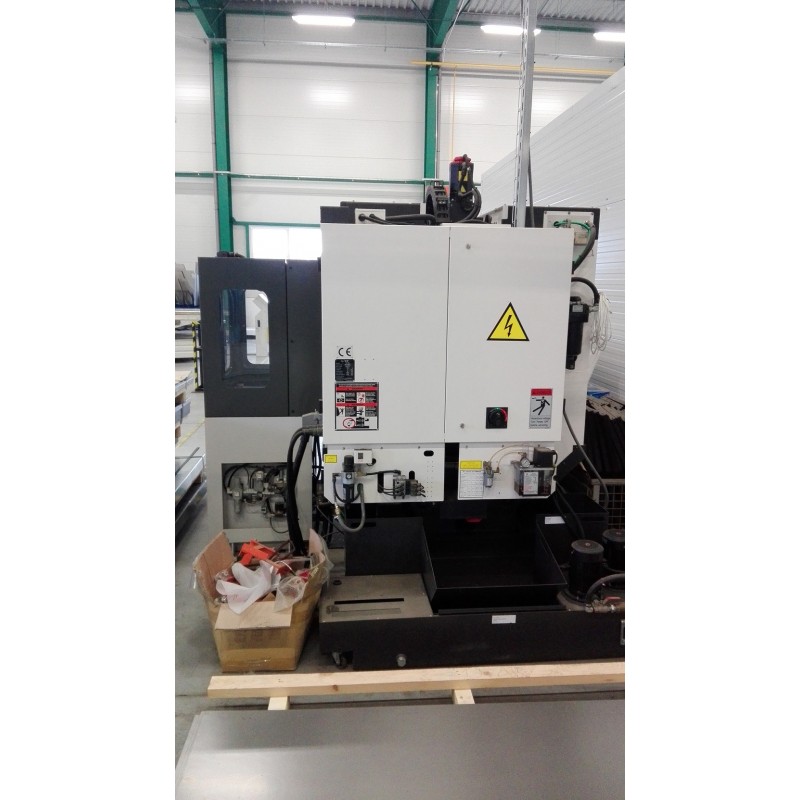

TV-500

Litz
Type: TV-500
Manufacturer: LITZ
Made in: 2015
Features:
Control system: FANUC OIM-MD (Type: A02B-0321-B530)
Share
Ask for price On request
Condition Used - Working

Machine data

Manufacturer LITZ
Condition Used - Working
Price type On request

Technical specifications

Weight 2.800 kg
Control type CNC

Occasional seller

A
Amaron s.r.o. Private seller
Member since 2017
99 ads online

SEND REQUEST

TV-500
TV-500
TV-500
TV-500

Type: TV-500
Manufacturer: LITZ
Made in: 2015
Features:
Control system: FANUC OIM-MD (Type: A02B-0321-B530)
Travel distances:
X: 500 mm
Y: 400 mm
Z: 330 mm
Spindle speed: 12000 rpm
Spindle nose to table: 150 -480 mm
Number of tools: 16
Maximum tool diameter: 60-80 mm
Maximum tool length: 250 mm
Maximum tool weight: 3 kg
Motor power: 3.7-5.5 Kw
Table size: 650 x 400 mm
Maximum load capacity: 250 kg
Power requirement: 15 kva
Coolant capacity: 200 L
Rapid speed:
X: 60 M min
Y: 60 M min
Z: 60 M min.
Cutting feed speed: 1-20000 mm-min
Machine weight: 2800 kg

  • Year: 2015
  • Weight (kg): 2800
  • Seller's country: Chequia
  • State: Used - Functional
  • Weight: 2,500 - 5,000 kg
  • Motor power: 5 - 15 kW
  • Control type: CNC
  • Condition: Array
  • Weight: 0.000000
