VTC 30C

Mazak

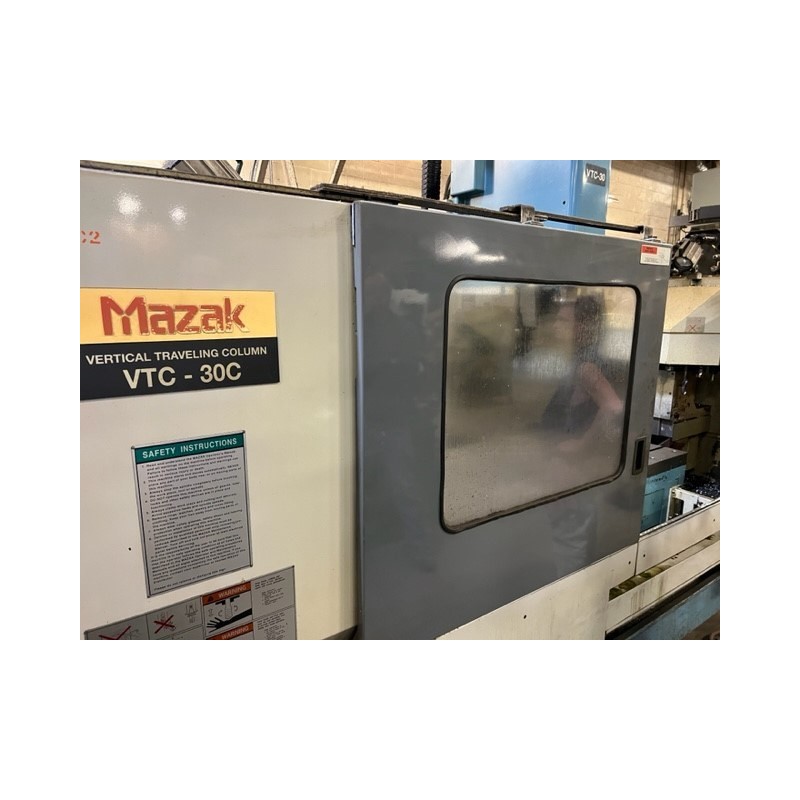

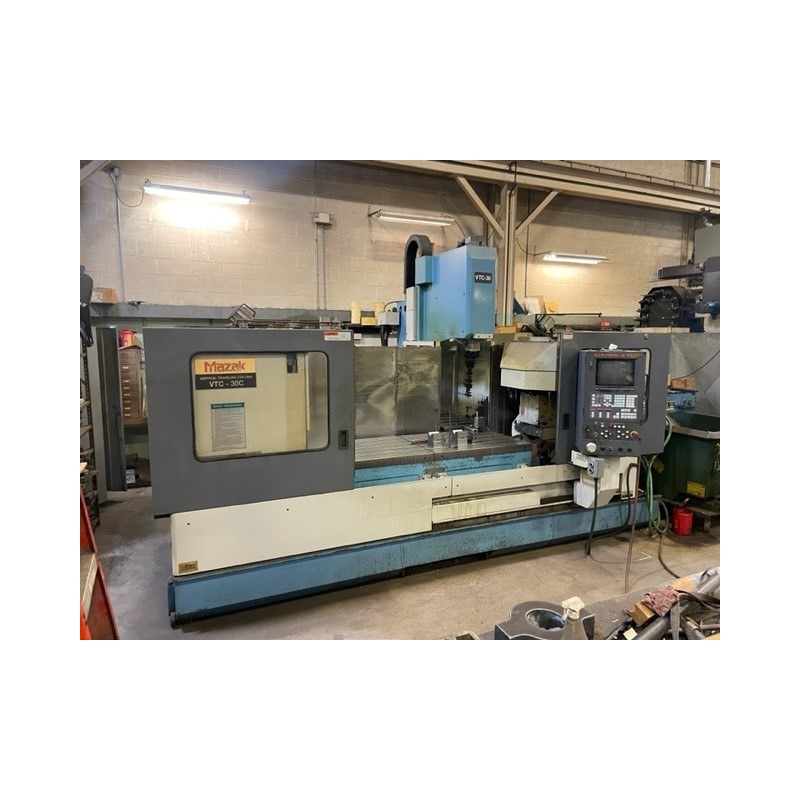

1998 MAZAK VTC 30C CNC VERTICAL MACHINING CENTER
Share
Ask for price On request
Condition Used - Working

Machine data

Manufacturer MAZAK
Condition Used - Working
Price type On request

Technical specifications

Weight 11.793,40 kg
X travel 1.659,89 mm
Y travel 762 mm
Z travel 660,40 mm
Spindle speed 8.000 rpm
Spindle power 18,65 kW
Tool changer slots 24

Occasional seller

F
FELDER ROYALTIES & INVESTMENT LLC Private seller
Member since 2024
36 ads online

SEND REQUEST

VTC 30C
VTC 30C

Number Of Tables / Pallets 1, Table Size 78.74" X 30.01, Weight On Table 3,300 LBS, Spindle Nose To Table 4.3" ~ 30.3", X - Axis Travel 65.35", Y - Axis Travel 30", Z - Axis Travel 26", Rapid Traverse X, Y, Z 1181, 1181, 1181 IPM, Spindle Speed 8,000 RPM, Spindle Taper 40 TAPER, Main Motor 25 HP, Automatic Tool Changer 24, Tool Diameter 3.14", 4.3", Tool Length 13.78", Tool Weight 17.6 LBS, Machine Weight 26,000 LBS, AUTOMATIC TOOL LENGTH MEASUREMENT TOOL BREAKAGE DETECTION, SYNCHRONIZED TAPPING ALL AVAILABLE MANUALS, 24 STATION ATC EIA, SHAPE COMPENSATION CORNER C/R, SHG CHIP CONVEYOR.

  • Year: 1998
  • Seller's country: United States
  • State: Used - Functional
  • Weight: More than 10,000 kg
  • X Travel: 1,000 - 2,000 mm
  • Y travel: 600 - 1,000 mm
  • Z travel: 500 - 800 mm
  • Spindle speed: 8,000 - 15,000 rpm
  • Spindle power: 15 - 30 kW
  • Tool changer: 20 - 30
  • Condition: Array
  • Peso: 0.000000
