VQ1060

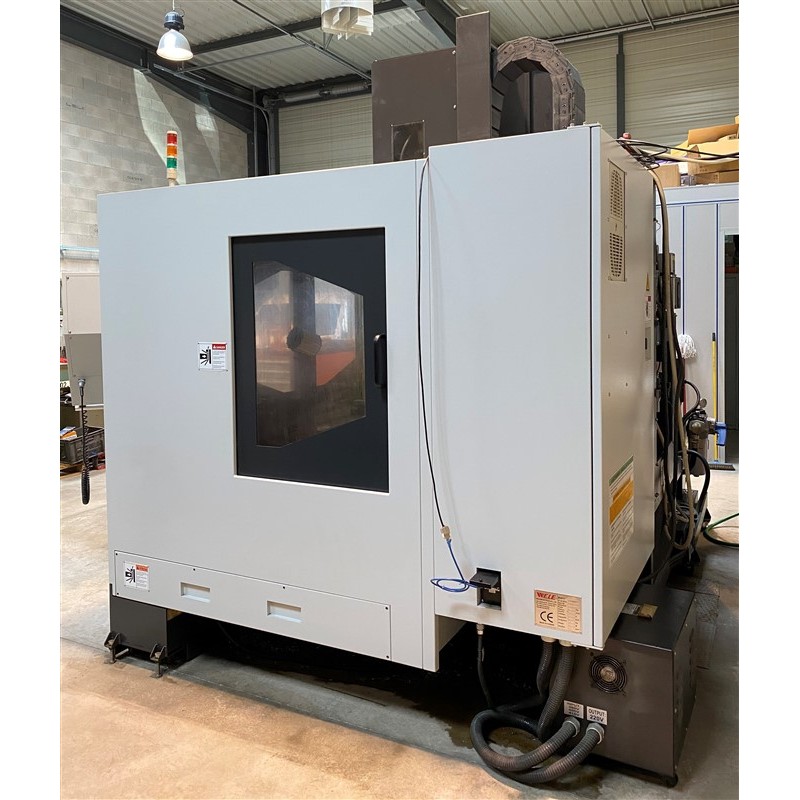

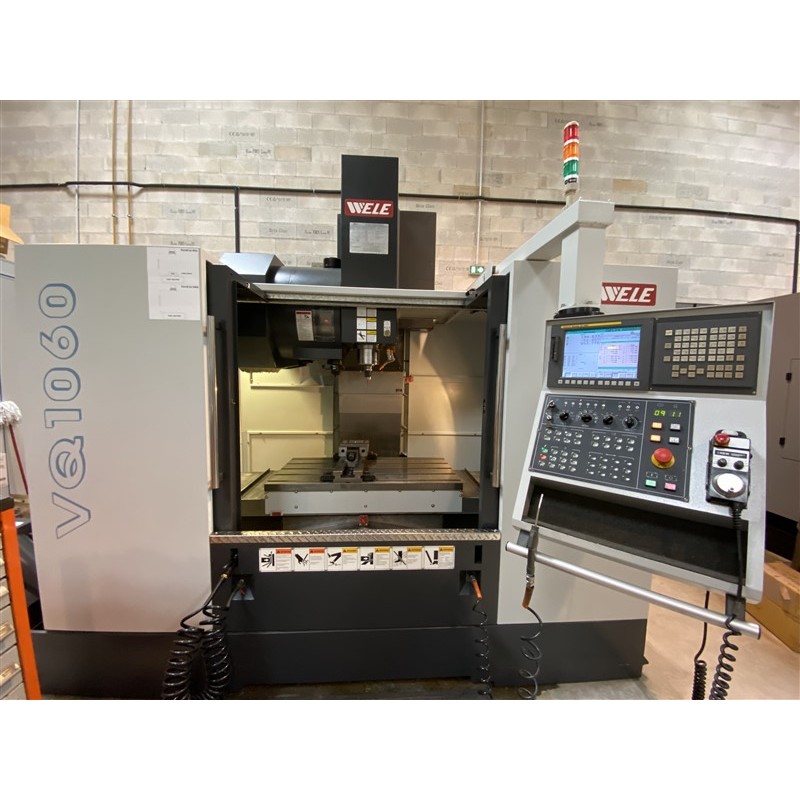

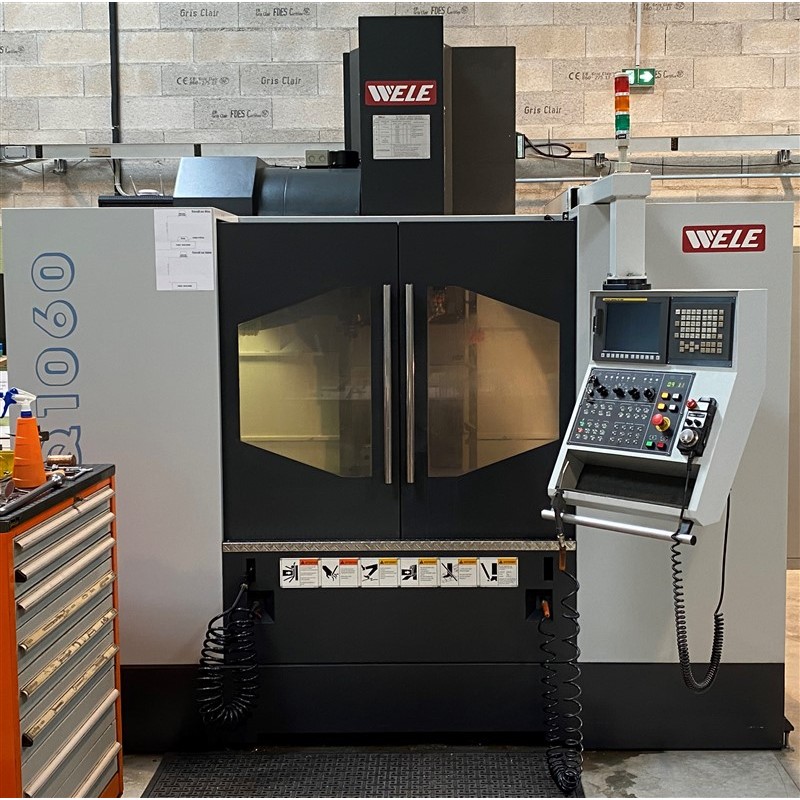

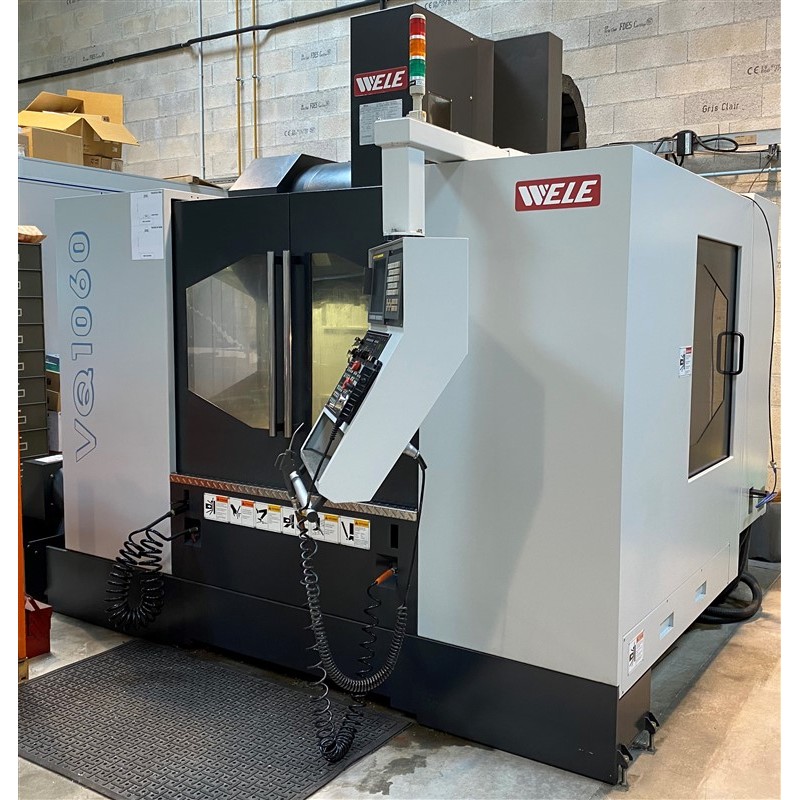

3-AXIS CNC MACHINING CENTER WELE VQ1060.

Manufacturing date: 07/2012

Installation date: 12/2012

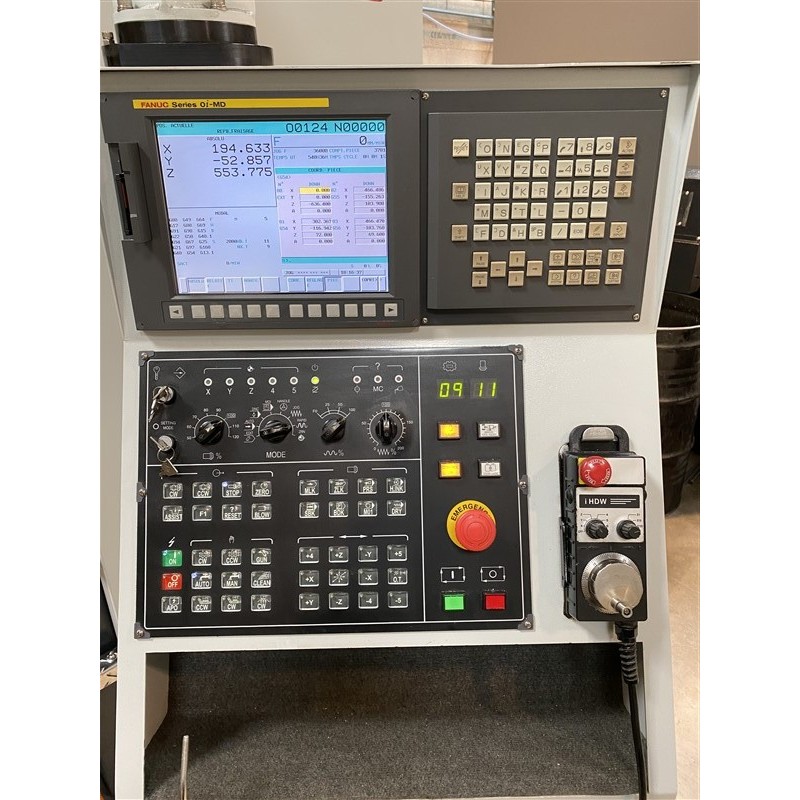

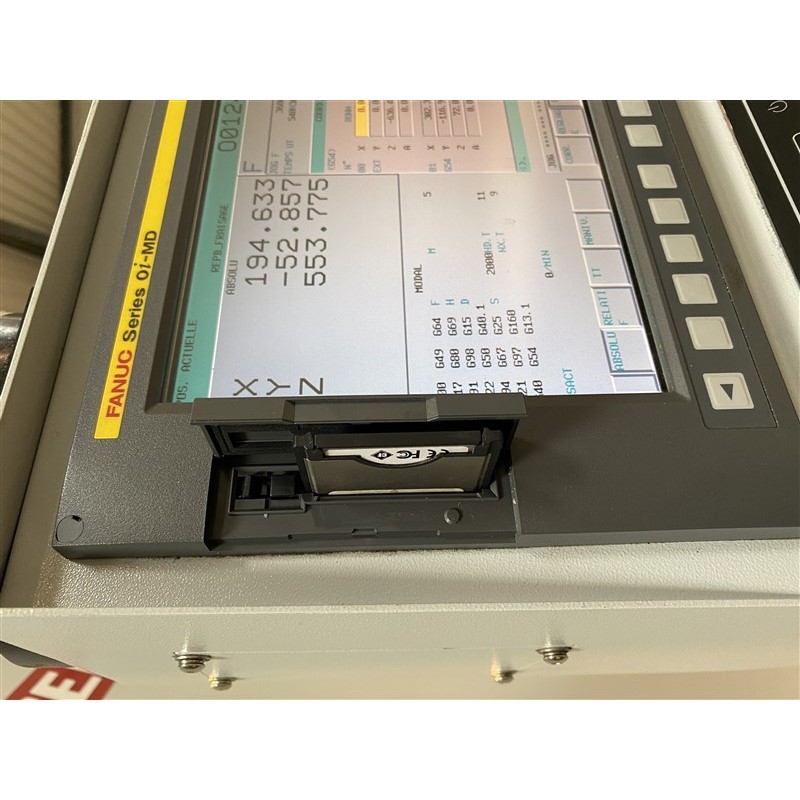

FANUC Oi-MD control with Manual Guide, ISO programming and FANUC conversational.

Spindle: 10000 rpm

Spindle motor power: 7.5 kW

11 kW

Spindle motor torque: 48 N.m up to 71 N.m

Tool holder: BT40

X travel: 1020 mm

Y travel: 600 mm

Z travel: 600 mm

Table dimensions: 1150 x 600 mm

Maximum table load: 700 kg

Traverse speeds: 36 m/min in X and Y, and 30 m/min in Z

24-tool changer: 24

Machine weight: 7200 kg



Optional accessories included:

Internal coolant 20 bars

Spindle oil cooler

Rigid tapping

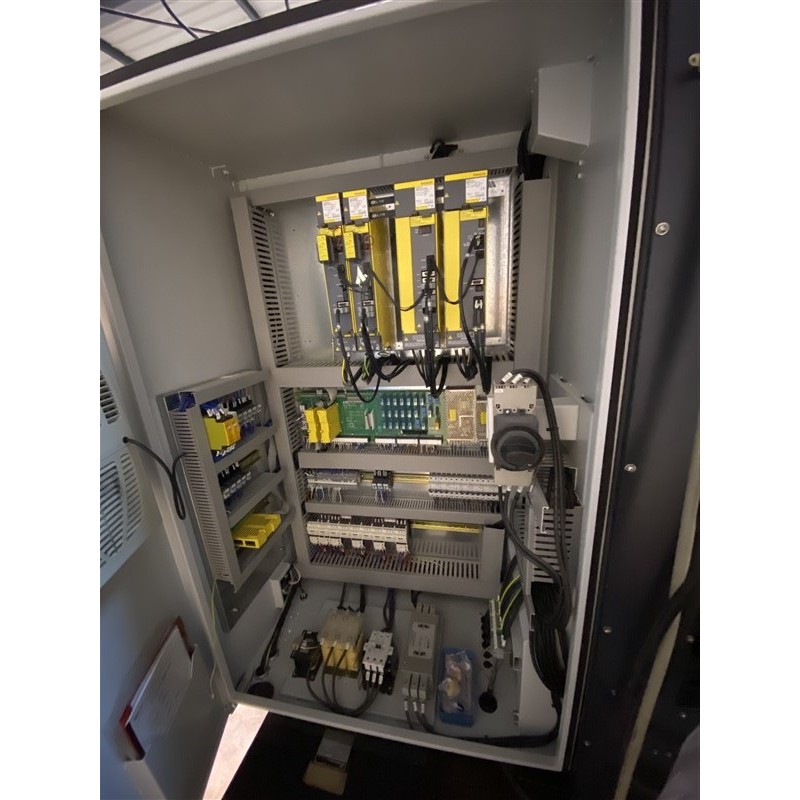

Heat exchanger in the electrical cabinet

Electronic handwheel

RS232 and Ethernet interface

PCMCIA interface

Halogen lighting

Compressed air gun

Coolant lubricant gun for cleaning the machine

Endless chip conveyors

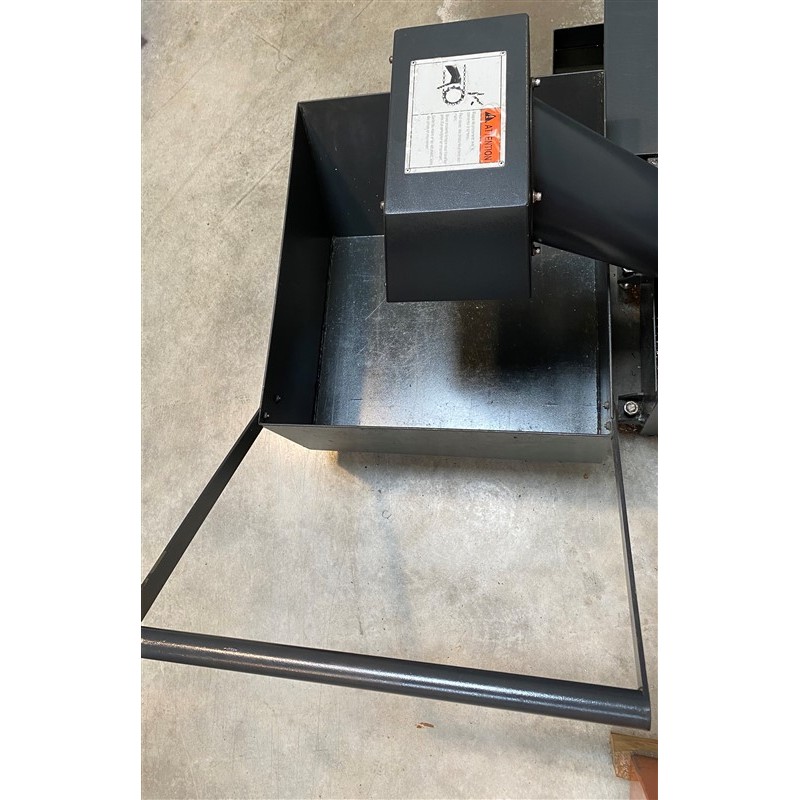

Chip collection bin



Time under power: 12588 hours

Operating time: 540.6 hours

Cutting time: 1667 hours



Machine running perfectly, it is in the workshop and can be tested.



Machine sold with all FANUC manuals (maintenance and programming).

Machine sold with about forty perforated tie rods for lubrication through the tool.

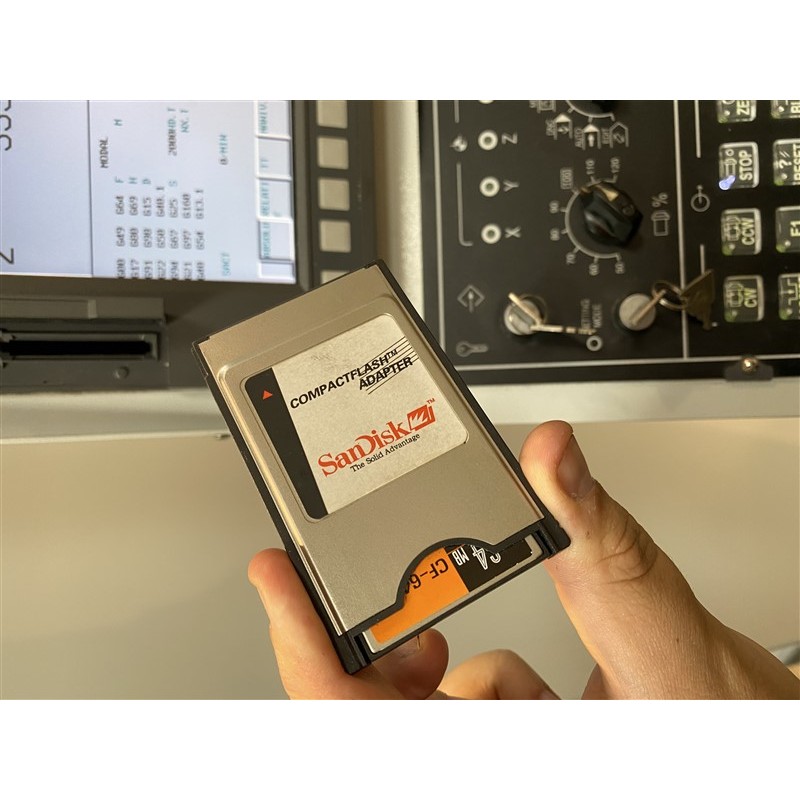

Machine sold with a Compact Flash memory card as well as the PCMCIA adapter.
