CAM

HORIZONTAL PRESS
Share
Ask for price On request
Condition Used - Working

Machine data

Condition Used - Working
Price type On request

Technical specifications

Length 5.900 mm
Width 3.300 mm

Occasional seller

D
DIMMTEX, S.A. Private seller
Member since 2017
22 ads online

SEND REQUEST

CAMP

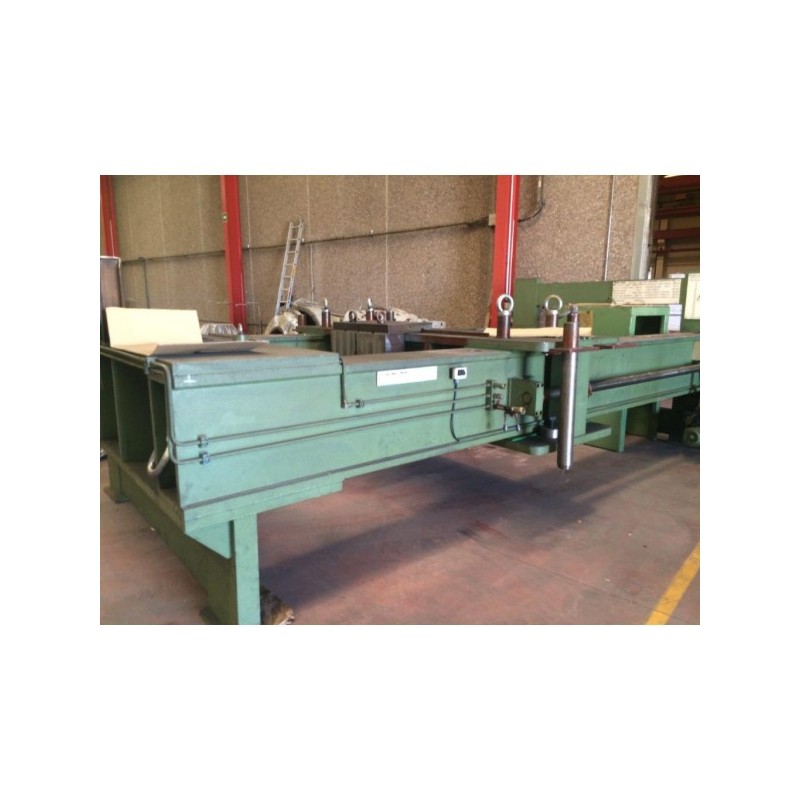

Horizontal press + cylinder. Special for extracting wind turbine bearings.
PRESS
From cylinder to table 3290 (+240) mm.
Distance between columns: 2000 mm.
Maximum clamping force: 750 Tn.
Table hole: 1040x628 mm.
CYLINDER
Internal Ø and area: 350 mm / 962 cm2
Maximum pressure: 780 AT/ 750 Tn.
Piston stroke: 400 mm.
Central screw stroke: 154 mm.
Total machine length: 5900 mm.
Total machine width: 3300 (3610) mm.
Weight: 16200 kg.

  • Seller's country: España
  • State: Used - Functional
  • Weight: More than 10,000 kg
  • Long: More than 5,000 mm
  • Width: More than 3,000 mm
  • Bending/pressing force: More than 600 tons
  • Condition: Array
  • Weight: 0.000000
