PLASMA CUTTING MACHINE CR ELECTRONICS

PLASMA CUTTING MACHINE CR ELECTRONICS
Share
Ask for price On request
Condition Used - Working

Machine data

Machine data
Condition Used - Working
Price type On request

Technical specifications

Technical specifications
Work area X 1.500 mm
Work area Y 3.000 mm
Max sheet thickness 8 mm
Control type CNC

Occasional seller

A
ALFANUM, LDA Private seller
Member since 2017
1 ad online

SEND REQUEST

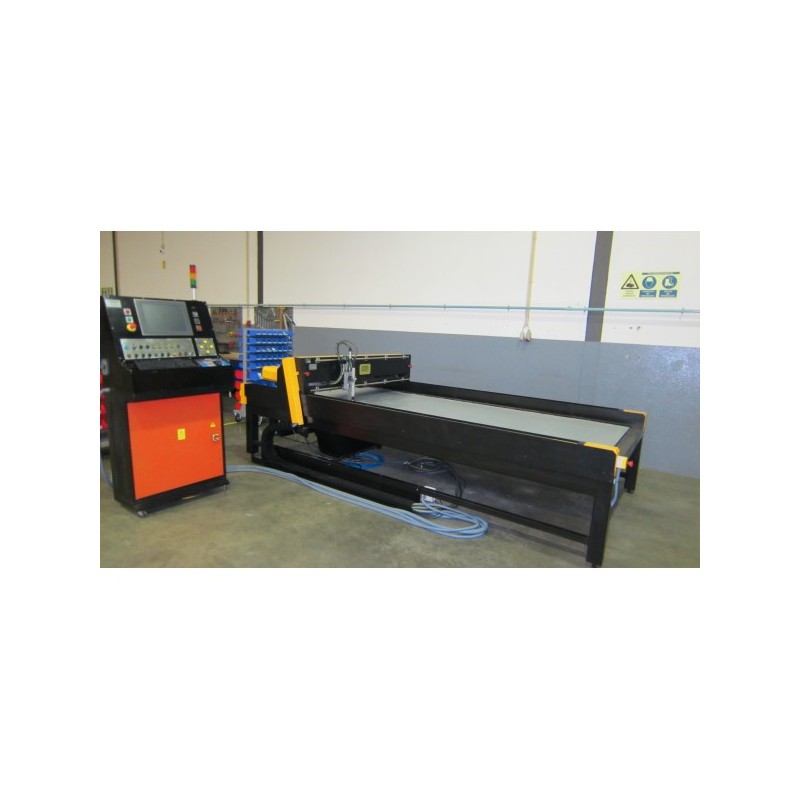

CNC plasma cutting machine semi-new, with very robust mechanics and electronics CR-Italian brand, Spa.
This machine was completely reconditioned by our company at the electrical, electronic, and software level (new equipment: CNC unit, industrial PC units, brushless AC three-phase servo drives, and all cables, generator unit, plasma torch body, etc.) and fully overhauled pneumatically and mechanically. The machine has also been completely painted.
Currently, the machine is equipped with the new HYPERTHERM POWERMAX 65 generator, specifically for plasma cutting in the boiler-making (HVAC) and mechanical assembly industries, delivering good quality with a thickness of 6/7 mm in steel and medium hardness 8/10 mm at the user's instructions.
The table working dimensions are: 1,500 x 3,000 mm.
Maximum axis speed: 30 m/min.
Axis positioning accuracy: +/-0.15 mm.
Axis repeatability: approx. 0.050 mm.
CNC graphical interface: windows with alphanumeric HMI software version ALFACUT IV.
The torch body is also new HYPERTHERM DURAMAX "latest generation" type and has a pneumatic marker with glass beads.

Warranty: 1 year (labor and materials).
Transport: included.
Price: USD 26,500

  • Seller's country: Portugal
  • State: Used - Functional
  • Control type: CNC
  • Maximum sheet thickness: 6 - 12 mm
  • X workspace area: Up to 2,000 mm
  • Work area Y: More than 3,000 mm
  • Condition: Array
  • Weight: 0.000000
