LINE mod. METRO

USE THE 4-AXIS HORIZONTAL MACHINING CENTER WITH MULTI-PLATFORM SYSTEM
Share
Ask for price On request
Condition Used - Working

Machine data

Condition Used - Working
Price type On request

Technical specifications

X travel 1.150 mm
Y travel 850 mm
Z travel 910 mm
Spindle power 22 kW
Tool changer slots 200

Occasional seller

M
MASTER GROUP Srl Private seller
Member since 2017
54 ads online

SEND REQUEST

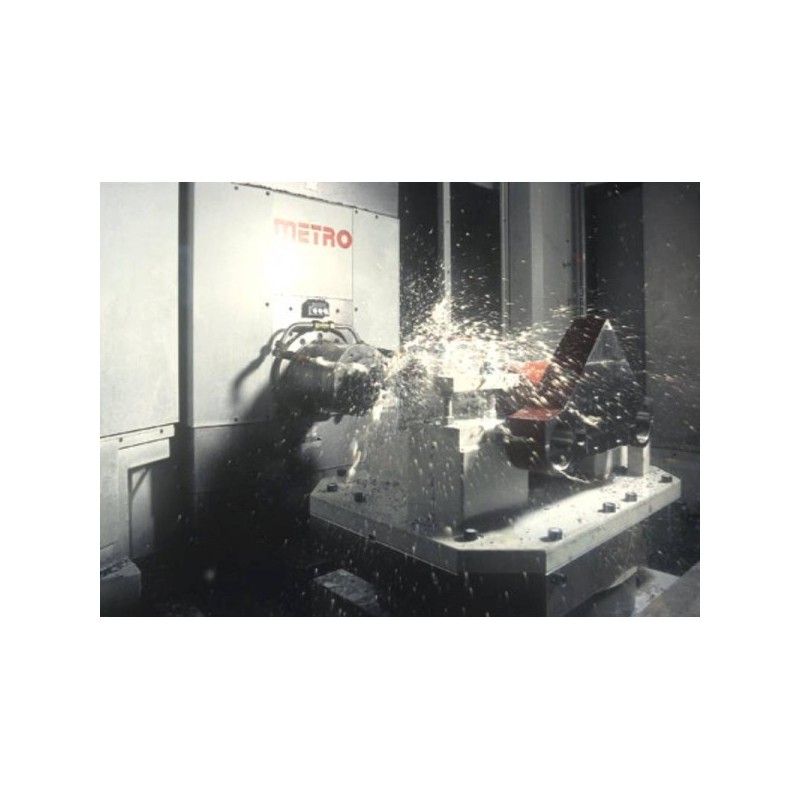

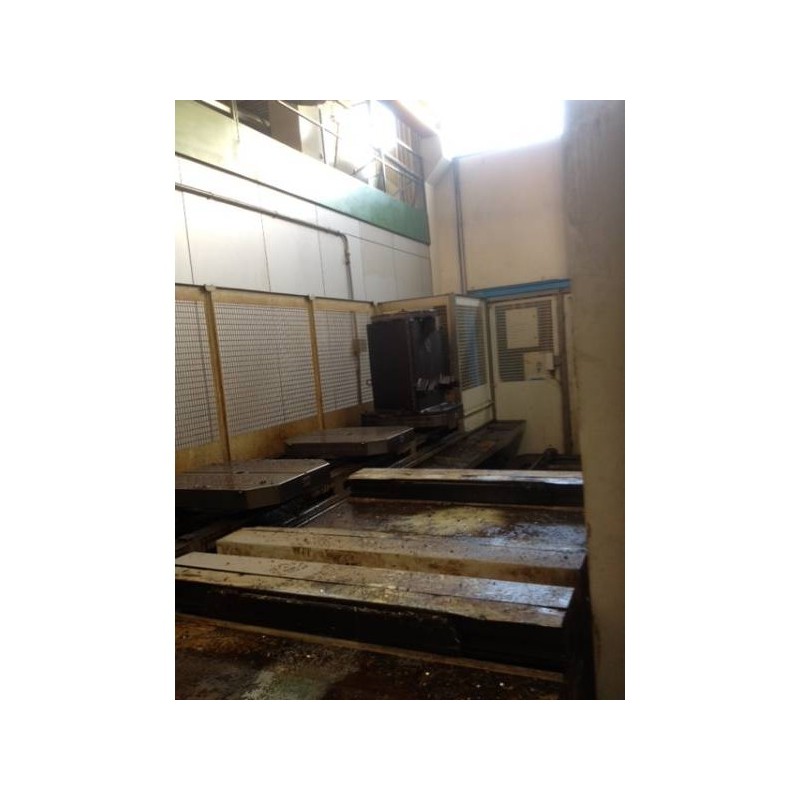

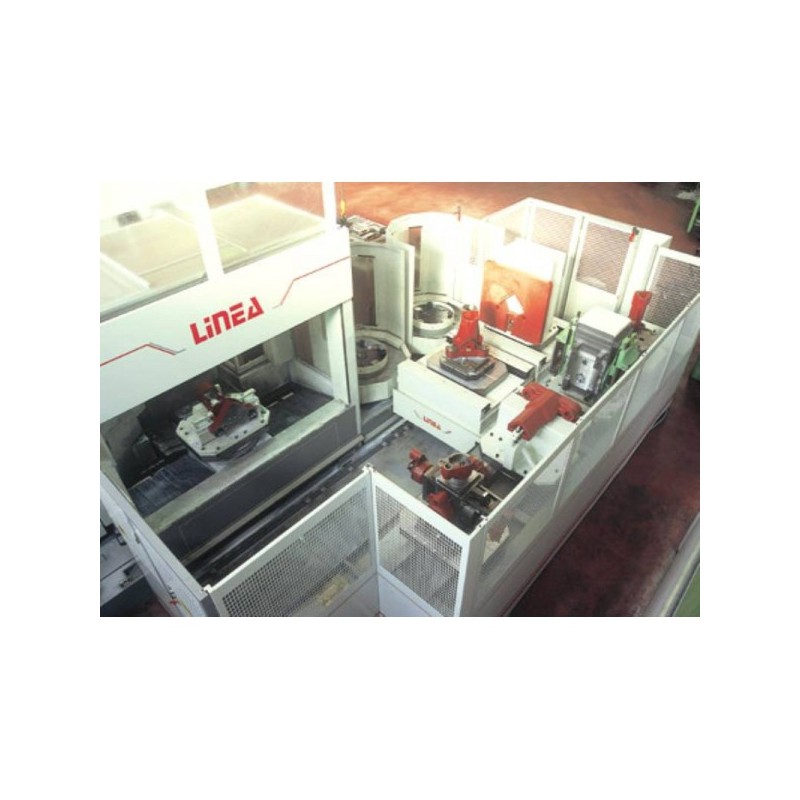

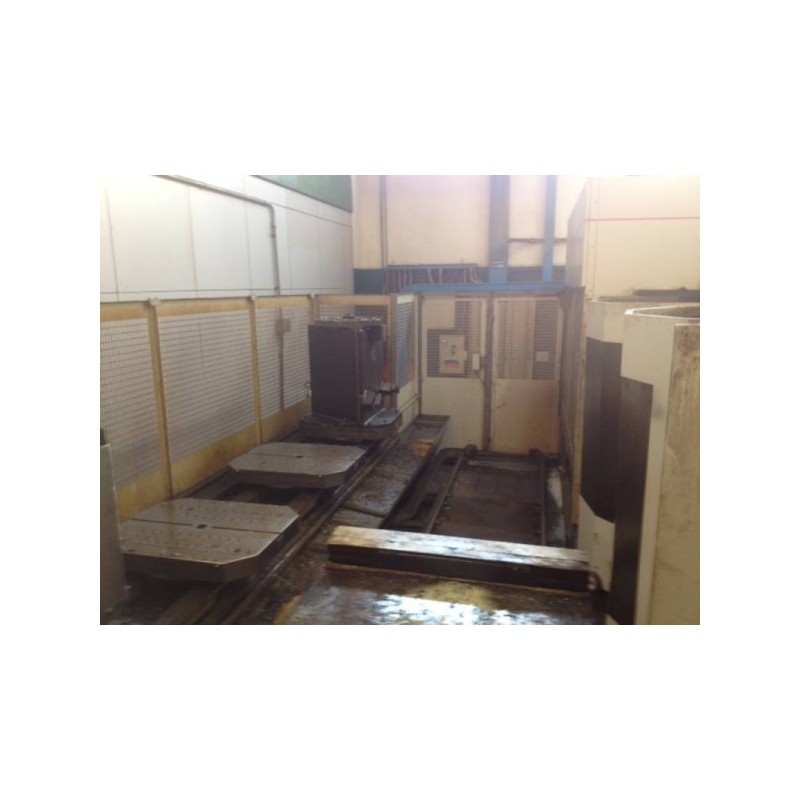

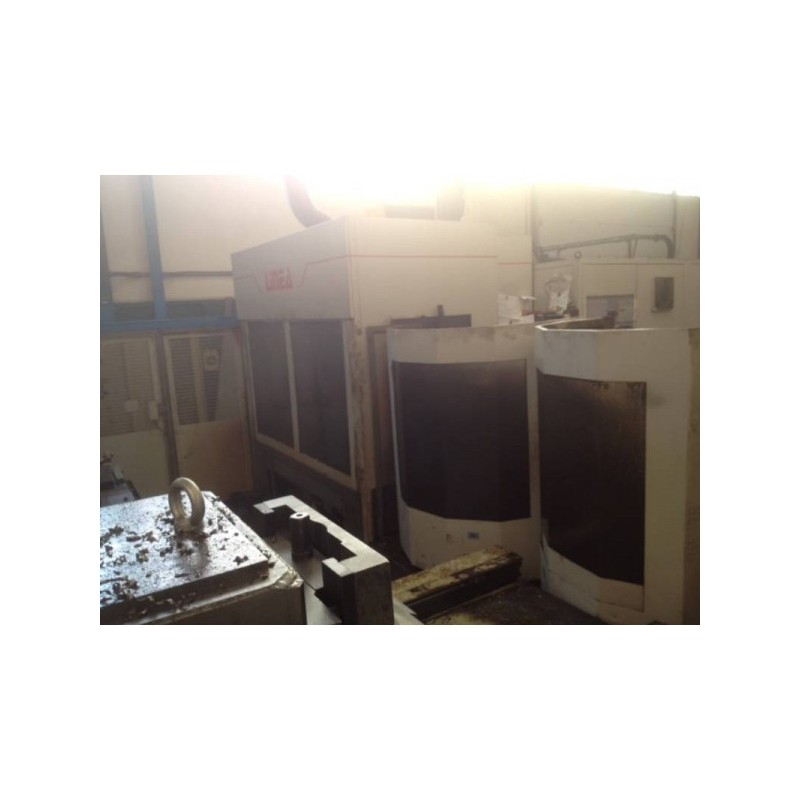

LINEA mod. METRO
LINEA mod. METRO
LINEA mod. METRO
LINEA mod. METRO
LINEA mod. METRO
LINEA mod. METRO

YEAR: 2000
X-axis TRAVEL: 1150 mm
Y-axis travel: 850 mm
Z-axis TRAVEL: 910 mm
RAPID FEED X-Y-Z: 35-35-35 m/min
SPINDLE: 4000 rpm; 18.5-22 kw; ISO 50
PALLETS: No. 7; 800 x 630 mm
MAXIMUM LOAD: 1000 Kg allowed
HIGH-PRESSURE COOLANT: 50 Bar
TOOL MAGAZINE: CHAIN-TYPE/200 POS

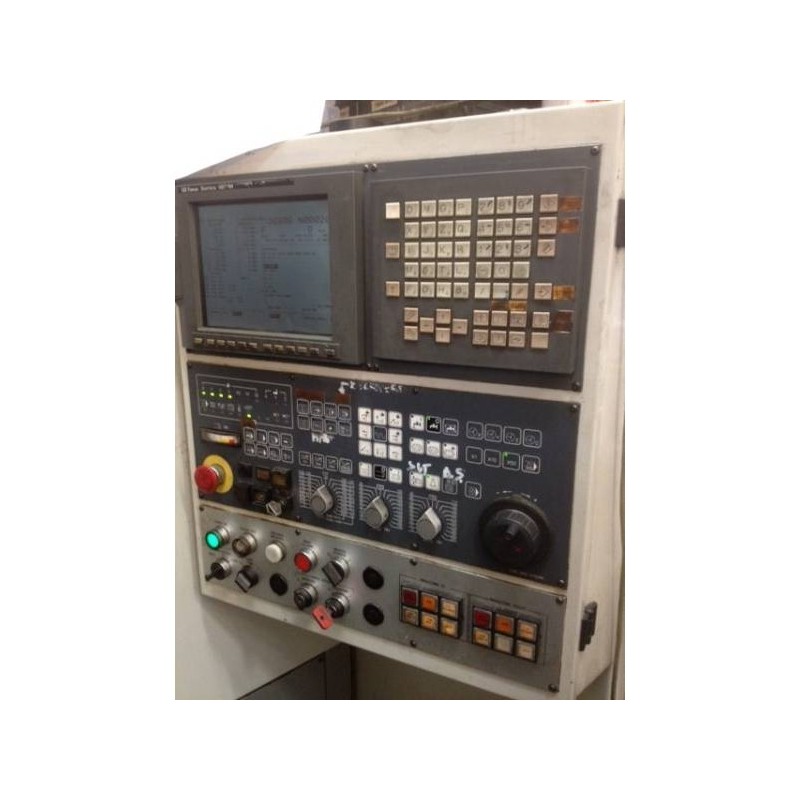

CONTROL UNIT: FANUC 16 m
ACCESSORIES: CHIP CONVEYOR

  • Seller's country: Italia
  • State: Used - Functional
  • X Travel: 1,000 - 2,000 mm
  • Y travel: 600 - 1,000 mm
  • Z travel: More than 800 mm
  • Spindle speed: 3,000 - 8,000 rpm
  • Spindle power: 15 - 30 kW
  • Tool changer: More than 60
  • Condition: Array
  • Weight: 0.000000
