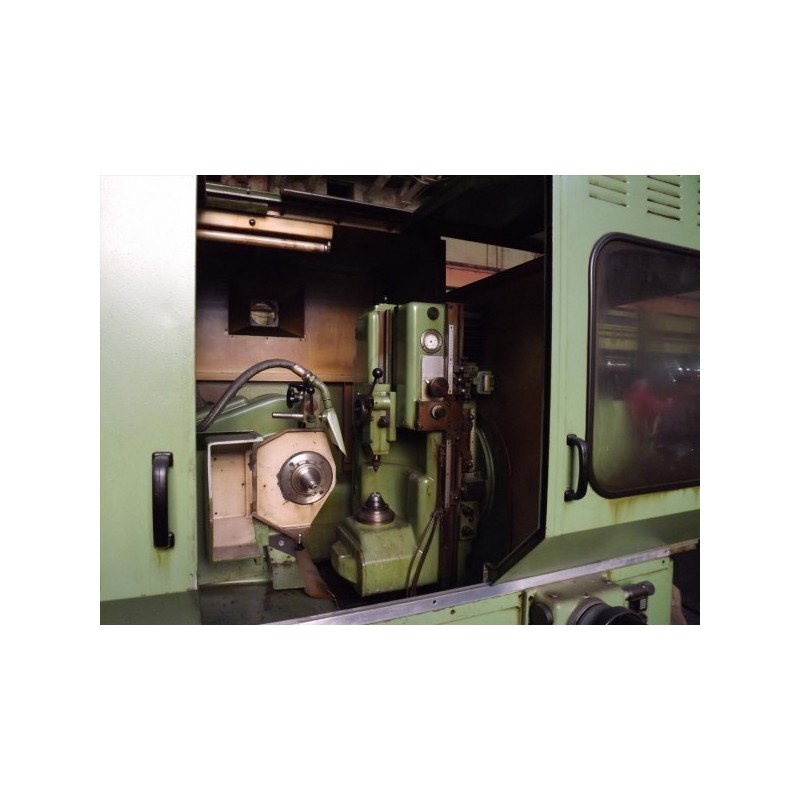

Reishauer AZO gear grinder



Some data:

Reishauer AZO gear grinder
1977 year of manufacture
Switzerland
Share
Ask for price On request
Condition Used - Working

Machine data

Condition Used - Working
Price type On request

Technical specifications

Weight 4.800 kg
Length 4.000 mm
Height 2.100 mm

Occasional seller

S
STAN MT LLC Private seller
Member since 2017
80 ads online

SEND REQUEST

Gear grinder Reishauer AZO


Specification:
Max. wheel diameter 330 mm
Gear width 180 mm
Max. Module 6
Min. module 0.5
Root circle diameter 10 mm
Slide stroke 180 mm
Clamping length 145-420 mm
Max. workpiece weight 60 kg
Number of teeth 12-260
Pressure angle 10-45 °
Max. helix angle +/-45 °
Hob diameter 270-350 mm
Hob width 62/84/104 mm
Total power requirement 30 kW
Machine weight approx. 4.8 t
Machine dimensions approx. 4.0 x 2.5 x 2.1 m


In perfect condition, very little use.

  • Seller's country: Ucrania
  • State: Used - Functional
  • Weight: 2,500 - 5,000 kg
  • Long: 3,000 - 5,000 mm
  • Width: Up to 1,000 mm
  • High: 1,500 - 2,500 mm
  • Condition: Array
  • Weight: 0.000000
