Impact Mill

Guibor
€196.00
Tax excluded
Impact Crusher. Manufacturing Drawings Only.
Share
Price €196.00
Condition Used - Working

Machine data

Manufacturer Guibor
Condition Used - Working
Hours of use 50 h
Price type Fixed price

Technical specifications

Weight 5.330 kg

Occasional seller

D
Daniel Kresisch Private seller
Member since 2017
15 ads online

SEND REQUEST

Molino Impacto
Molino Impacto
Molino Impacto
Molino Impacto
Molino Impacto

This type of mill can perform primary, secondary, and fine crushing for various materials, such as granite, limestone, concrete, asphalt, and rubble, etc.
They are used in minerals, railways, roads, energy, cement, chemicals, and construction.

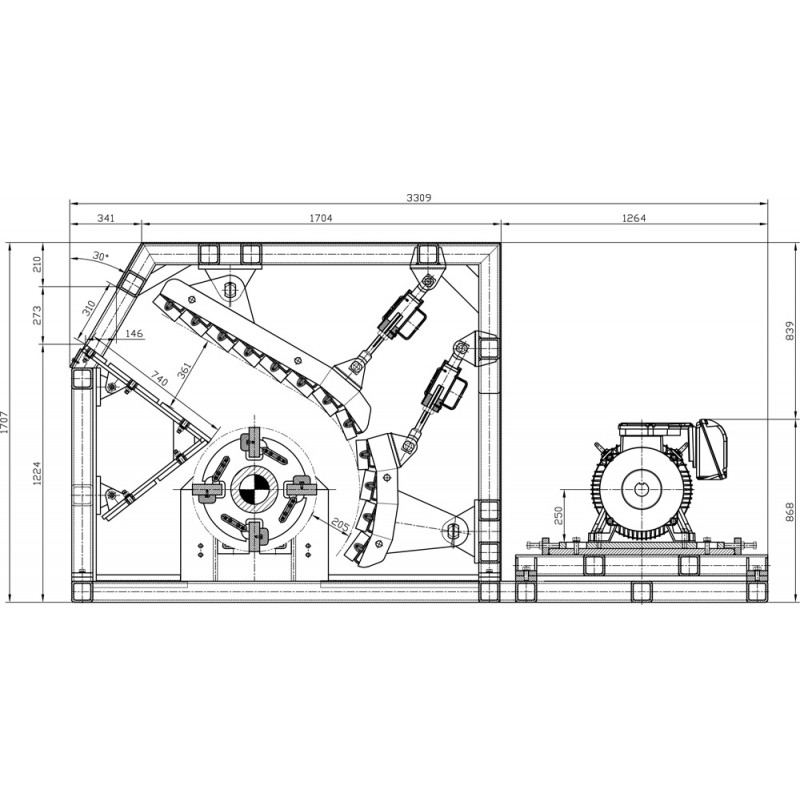

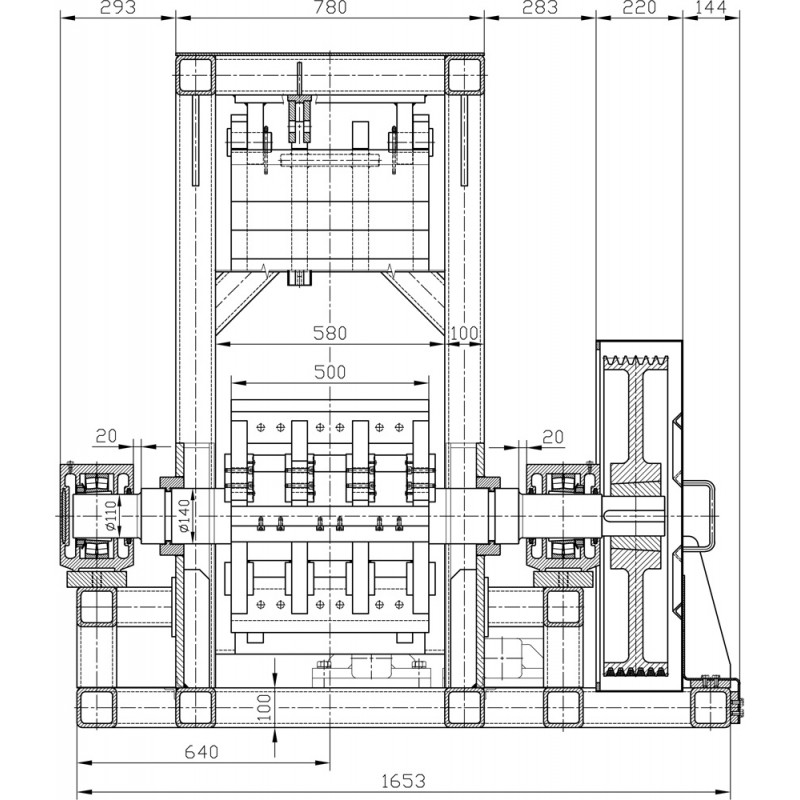

Only the complete plans to manufacture the Impact Crusher equipment are sold.
Power: 75 HP (55 kW)
Rotation Speed: 453 RPM
Rotor: ∅500x500 mm
Contact Material: SAE 4140
Feed Opening: 580x310 mm
Maximum Feed Size: 250 mm
Crushed: Variable Size
Capacity: 40-60 t/h
Equipment Weight: 5330 Kg
The design is by the renowned Engineer Teodoro Kresisch, and you can purchase the complete plans in pdf format.

  • Year: 2016
  • Hours of use: 0 - 100
  • Weight (kg): 5330
  • Seller's country: Argentina
  • State: Used - Functional
  • Hours of use (value): I need the text you want me to translate. You only wrote "50". Please provide the full text you'd like translated from Spanish to English.
  • Weight: 5,000 - 10,000 kg
  • Motor power: 30 - 75 kW
  • Condition: Array
  • Weight: 0.000000
