CNC 130 Double Pallet Boring Machine

CNC boring machine 130 with double pallet.
In good condition, working, installed.

Spindle sleeve 130 mm
Share
Ask for price On request
Condition Used - Working

Machine data

Condition Used - Working
Price type On request

Technical specifications

Weight 10.000 kg
X travel 2.000 mm
Y travel 1.800 mm
Z travel 800 mm
Spindle speed 3.000 rpm
Spindle power 55 kW

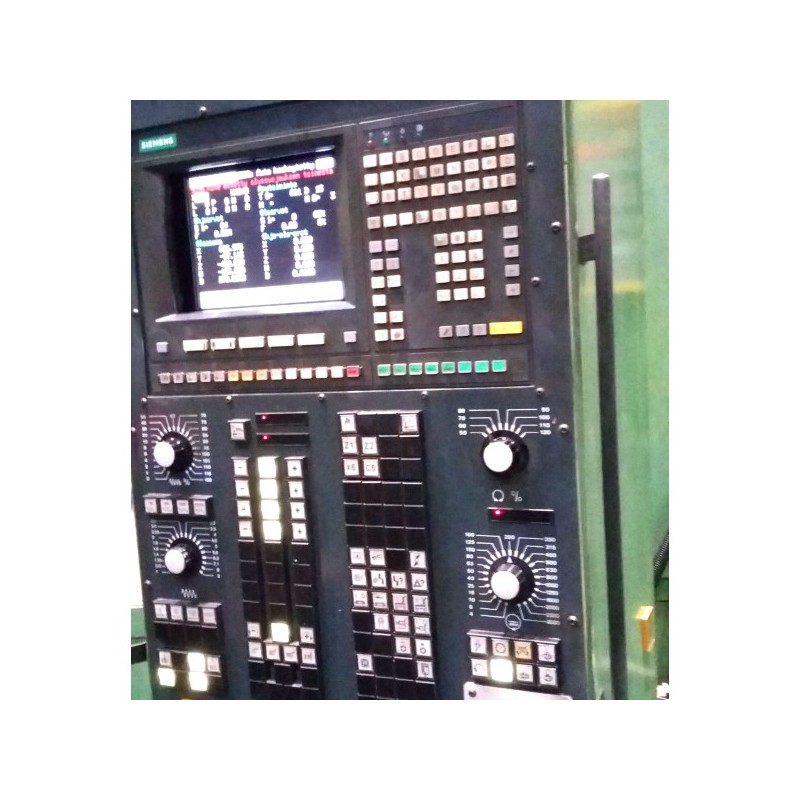

Control type CNC

Occasional seller

M
Max Machinery Private seller
Member since 2017
48 ads online

SEND REQUEST

Alesatrice 130 CNC Doppio Pallet
Alesatrice 130 CNC Doppio Pallet
Alesatrice 130 CNC Doppio Pallet
Alesatrice 130 CNC Doppio Pallet

CNC 130 boring machine with double pallet.
In good condition, operational, installed.

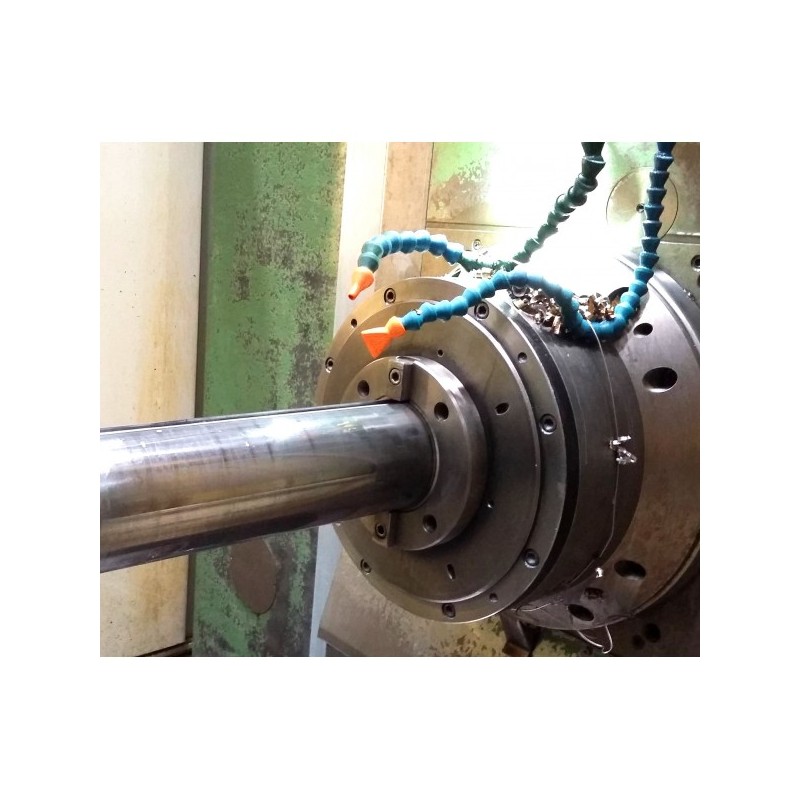

Spindle sleeve 130 mm
ISO 50
Speed 3,000 RPM
Internal spindle coolant.
Motor power 55 kW
X 2,000 mm
Y 1,800 mm
W 2,000 mm
Z 800 mm
B axis

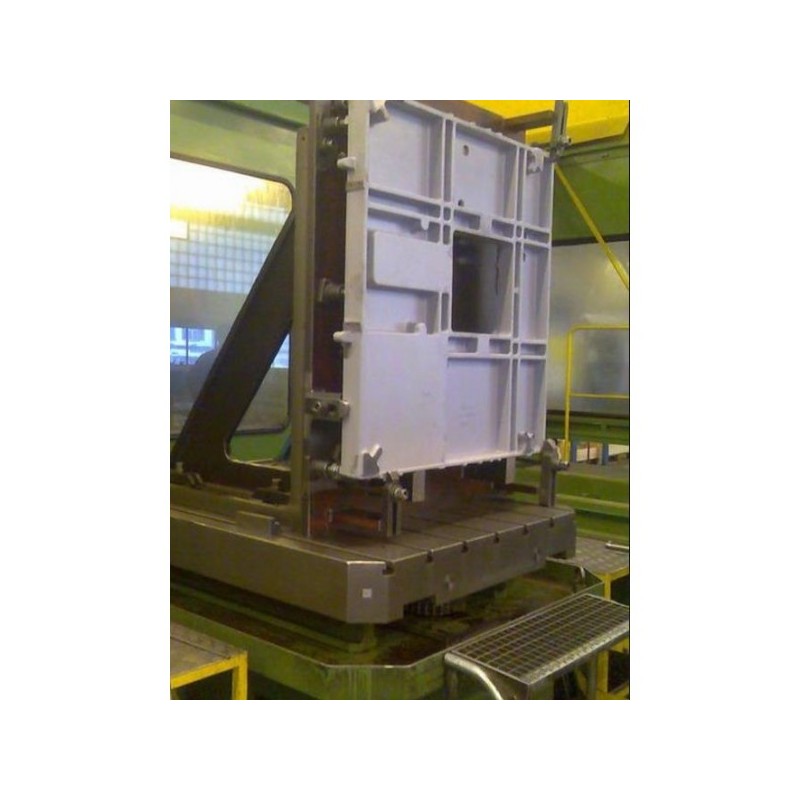

Double pallet 1,200 x 1,650 mm
Table load capacity 10 tons.
Chip conveyor.
Automatic tool changer.

  • Seller's country: Italia
  • State: Used - Functional
  • Weight: More than 10,000 kg
  • Control type: CNC
  • X Travel: 2,000 - 3,000 mm
  • Y travel: More than 1,000 mm
  • Z travel: More than 800 mm
  • Spindle speed: 3,000 - 8,000 rpm
  • Spindle power: More than 30 kW
  • Condition: Array
  • Weight: 0.000000
