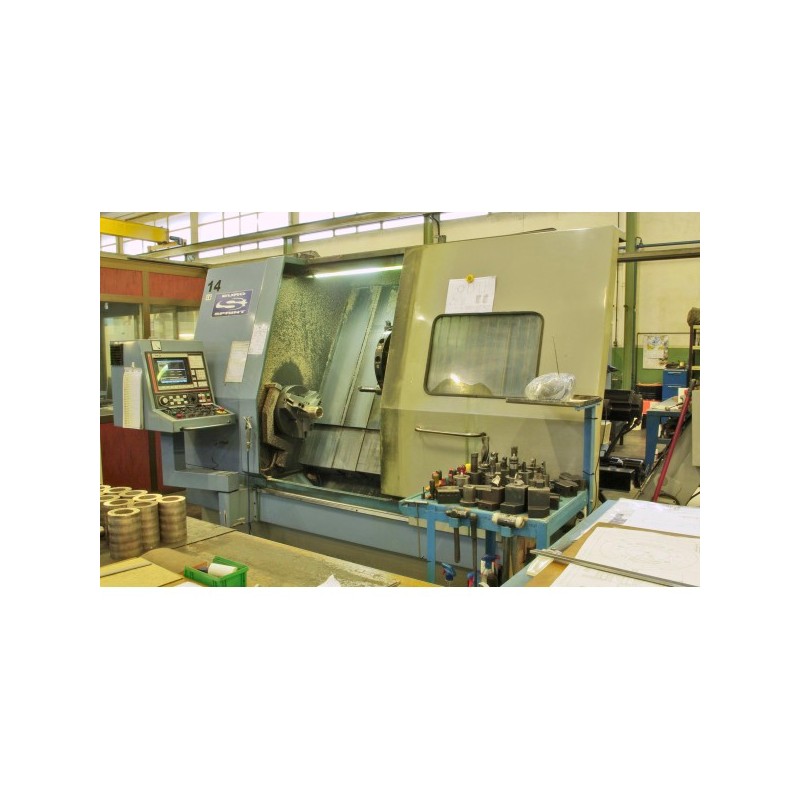

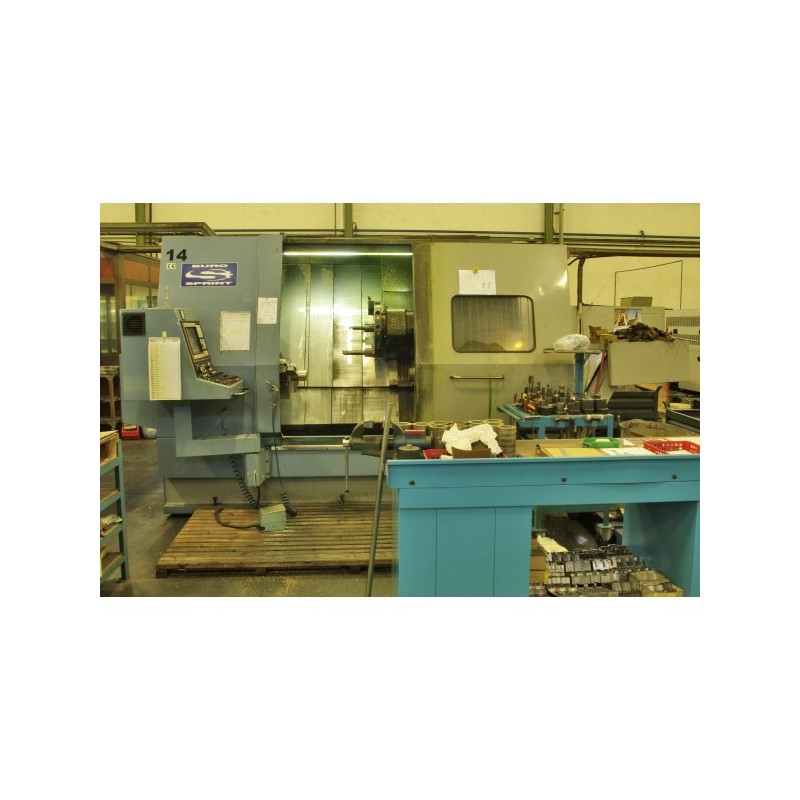

EUROSPRINT MODEL 80 CNC

CNC Lathe, brand EUROSPRINT, model 80 CNC/2 for work between centers, chuck, and bar.

1. CAPACITIES:
Swing over bed 600 mm
Maximum turning diameter 500 mm
Maximum longitudinal travel 1100 mm
Maximum cross travel 300 mm
Maximum distance between chuck and turret 900 mm

2. HEADSTOCK:
Spindle bearing diameter 140 mm
Spindle bore 90 mm
Spindle nose A2-8
Maximum bar capacity with collet chuck 80 mm
Maximum chuck diameter 315 mm
Infinitely variable speeds 25-3000 rpm

3. TAILSTOCK:
Quill diameter 100 mm
Quill hydraulic stroke 150 mm
Morse taper n5
Maximum thrust 1500 kg

4. TURRET:
Number of stations 12
Tool holder VDI-3425 (cylindrical shank) Ø40 mm with tool holders for external tools 25 mm and internal tools 10 to 40 mm.
Rapid traverse X-axis 12.5 m/min
Rapid traverse Z-axis 15 m/min
