Chiron MILL 800

CNC turning milling 5-axis bar machining center (mill-turn)
Share
Ask for price On request
Condition Used - Working

Machine data

Condition Used - Working
Hours of use 7.500 h
Price type On request

Technical specifications

Control type CNC
CNC control brand Fanuc
X travel 800 mm
Y travel 500 mm
Z travel 550 mm
Tool changer slots 65

Occasional seller

M
Mimu Private seller
Member since 2017
3 ads online

SEND REQUEST

Chiron MILL 800
Chiron MILL 800
Chiron MILL 800
Chiron MILL 800
Chiron MILL 800
Chiron MILL 800

5-axis machining center (milling/turning from bar stock)
Low power in our warehouse

MAKE CHIRON

Model 800 5-axis Mill

FANUC 18iMBS CNC (5 simultaneous axes 1 *)

X, Y, Z (mm) 800-500-550

Rapid traverse (high speed) 60 m/min or two individually CNC-controlled heads (B-axis) +/-100°

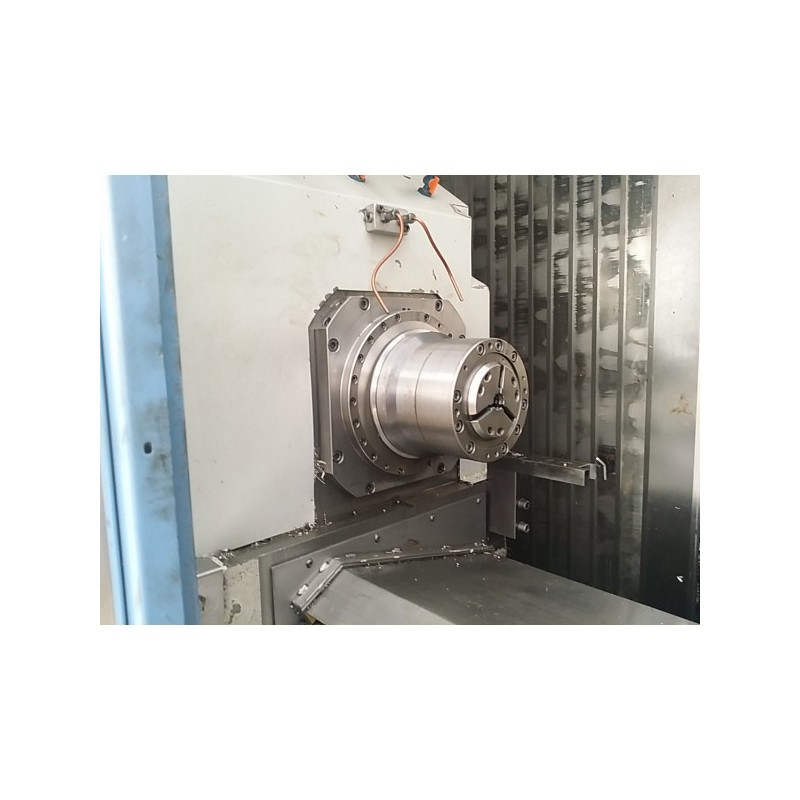

Peiseler turning axis

Milling spindle 12,000 rpm 140 Nm (see note 2 **)

Tools 65

Tool type HSK-A 63 DIN 69893

1.5 sec tool change time (see note 3 ***)

Table 1400 x 500

Max table load 1200 kgs

Coolant through 70 bars (see note 4 ***) CNC-controlled clamping/rotation unit for 6-sided machining (see note 5) pressure linear encoders

Renishaw chip conveyor ready year 2006

Weight 7500 kgs turning package
Max diameter 65 mm
RPM: 15/Max 4500 42.5 KW/90 Nm.
Hydraulic clamping 800 Nm.

  • Year: 2006
  • X travel (mm): 800
  • Y travel (mm): I need the text you want me to translate. Please provide it.
  • Z travel (mm): I need the text you want me to translate. Please provide the Spanish text you'd like me to translate into English.
  • Hours of use: More than 5000
  • Rotation speed (rpm): 12,000
  • Table size (width) (mm): I need the text you want me to translate. Please provide the Spanish text you'd like me to translate into English.
  • Table size (length) (mm): 1400
  • Tool changer (num tools): I need the text you want me to translate. Please provide it.
  • Seller's country: Italy
  • State: Used - Functional
  • Hours of use (value): 7,500
  • Weight: 5,000 - 10,000 kg
  • Control type: CNC
  • X Travel: 500 - 1,000 mm
  • Y travel: 300 - 600 mm
  • Z travel: 500 - 800 mm
  • Spindle speed: Up to 3,000 rpm
  • Tool changer: More than 60
  • CNC control brand: Fanuc
  • Condition: Array
  • Weight: 0.000000
